🔌 I2C LCD Adapter Module – Full Description

📌 What is an I2C LCD Adapter Module?

The I2C LCD Adapter Module (also called LCD Backpack) is a small interface board that converts a standard 16-pin parallel LCD (like 16×2 or 20×4) into an I2C-based display.

Instead of using 6–10 digital pins, it allows communication using only 2 data lines:

• SDA (Data)

• SCL (Clock)

This greatly simplifies wiring and saves microcontroller pins.

🧠 Main Function

It acts as a bridge between:

• 🔹 Microcontroller (Arduino, ESP32, Raspberry Pi, etc.)

• 🔹 Standard HD44780 compatible LCD

Using I2C communication protocol.

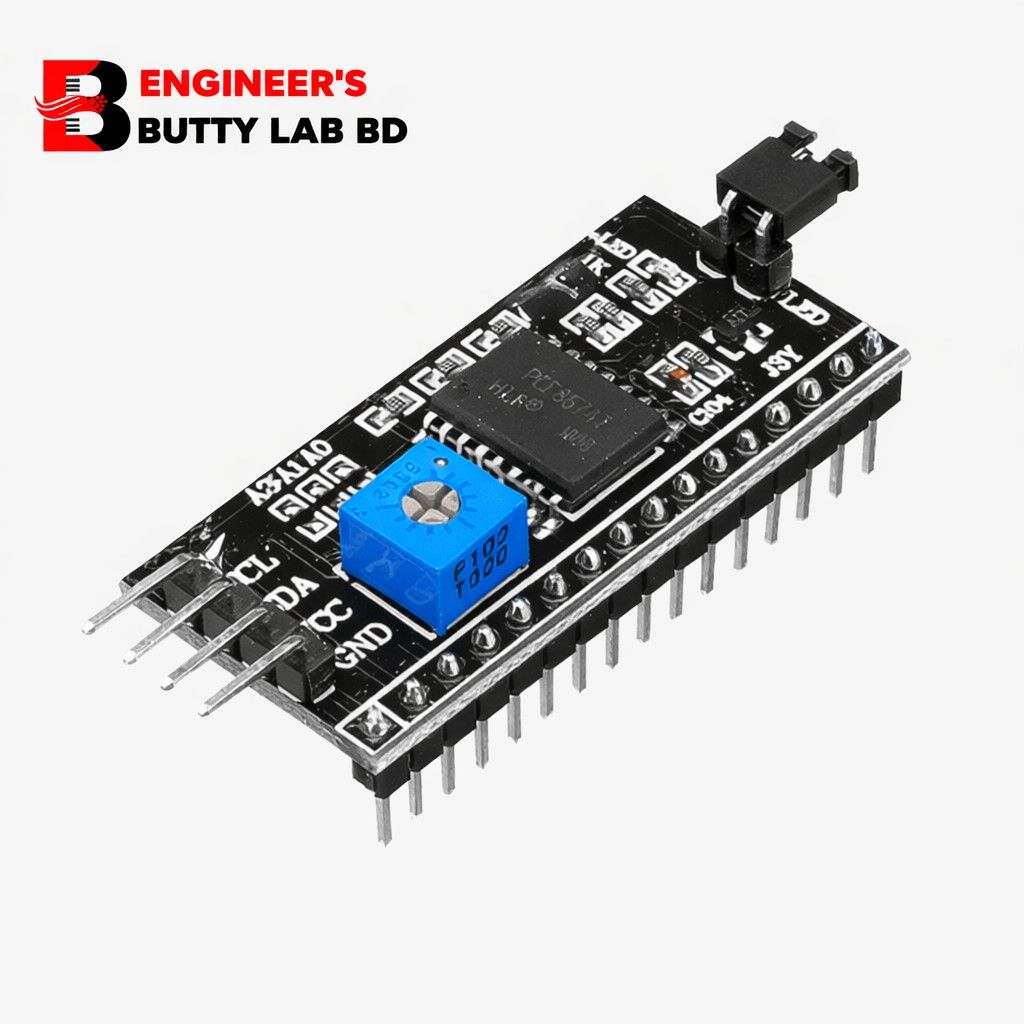

⚙️ Main Components on the Module

1️⃣ PCF8574 I/O Expander IC

• Converts I2C signals into parallel data

• Most commonly used chip: PCF8574 / PCF8574T

• 8-bit I/O port expander

2️⃣ Contrast Adjustment Potentiometer

• Blue variable resistor (usually 10K)

• Used to adjust LCD contrast manually

3️⃣ I2C Address Jumpers (A0, A1, A2)

• Used to change I2C address

• Default address usually:

  • 0x27

  • Sometimes 0x3F

You can connect multiple LCDs by changing address.

4️⃣ 16-Pin LCD Connector

• Directly mounts behind 16×2 or 20×4 LCD

5️⃣ 4-Pin I2C Interface

🔋 Electrical Specifications

• Operating Voltage: 5V DC

• Logic Level: 5V TTL

• Communication Protocol: I2C

• Data Speed: Up to 100kHz (standard I2C)

📏 Physical Specifications

• Compact PCB board

• Black or blue PCB

• Lightweight and small form factor

• Male header pins for easy connection

🧑‍💻 Compatible Devices

✅ Arduino UNO / Nano / Mega
✅ ESP8266
✅ ESP32
✅ Raspberry Pi
✅ STM32
✅ PIC Microcontroller
✅ AVR
✅ ARM

🔄 Why Use I2C Adapter?

Without I2C:

• LCD requires 6–10 digital pins

With I2C:

• Only 2 pins required

• Cleaner wiring

• Easier code

• Saves microcontroller resources

🛠 Working Principle

1. Microcontroller sends data via I2C (SDA & SCL).

2. PCF8574 receives data.

3. PCF8574 converts serial data into parallel signals.

4. LCD receives data and displays characters.

🧾 Advantages

✔ Reduces wiring
✔ Saves I/O pins
✔ Easy to use
✔ Compact size
✔ Ideal for beginners
✔ Clean project layout

📦 Common Applications

• Arduino Projects

• Robotics

• Smart Home Systems

• IoT Devices

• Industrial Display Panels

• Temperature Monitoring Systems

• Digital Clocks

• Embedded Systems

🆚 Comparison: Normal LCD vs I2C LCD

📌 Typical I2C Address

• Default: 0x27

• Alternative: 0x3F

(You can confirm using I2C scanner code.)

🧑‍💻 Example Arduino Code
