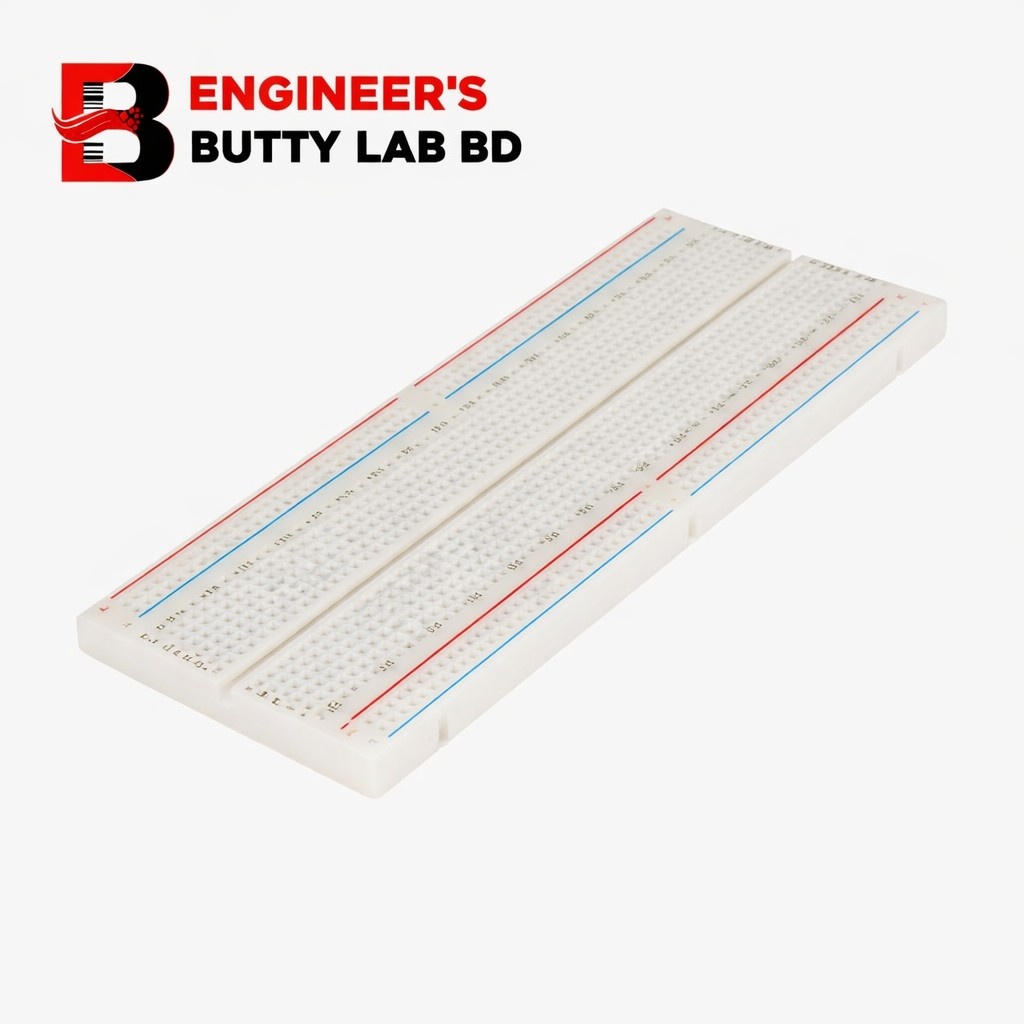

Breadboard Full Size Bare 830 Tie Points

🔹 Product Overview

The Breadboard Full Size Bare – 830 Tie Points is a professional solderless prototyping board designed for building, testing, and modifying electronic circuits without soldering. It is widely used in educational labs, engineering projects, Arduino development, and advanced prototyping.

🔹 Key Features

• Total Tie Points: 830

• Terminal Strips: 630 tie points (main prototyping area)

• Power Rails: 200 tie points (4 power rails – 2 positive, 2 negative)

• Solderless Design: Easy plug-and-play circuit building

• Reusable: Components can be inserted and removed multiple times

• Self-Adhesive Backing: Peel-and-stick mounting

• Interlocking Design: Can connect multiple breadboards together

🔹 Internal Connection Structure

• Each row of 5 holes is internally connected horizontally.

• The center gap allows easy placement of DIP ICs (e.g., ATmega, 555 timer, op-amps).

• Power rails run vertically along both sides for VCC and GND distribution.

• Clearly marked row numbers and column letters for easy wiring.

🔹 Technical Specifications

• Body Material: High-quality ABS Plastic

• Contact Material: Phosphor Bronze with Nickel plating

• Color: White

• Rated Voltage: Suitable for low-voltage DC circuits (3V–12V typical)

• Compatible Wire Gauge: 20–29 AWG

• Typical Dimensions: Approx. 16.5 cm × 5.5 cm × 1 cm

🔹 Applications

• Arduino & ESP projects

• Raspberry Pi prototyping

• Robotics development

• IoT circuit testing

• Analog & Digital circuit experiments

• Educational lab use

• Sensor and module interfacing

🔹 Advantages

✔ Large working area
✔ Ideal for complex circuits
✔ No soldering required
✔ Saves time in testing
✔ Perfect for students and professionals

🔹 Package Includes

• 1 × Breadboard Full Size Bare (830 Tie Points)
