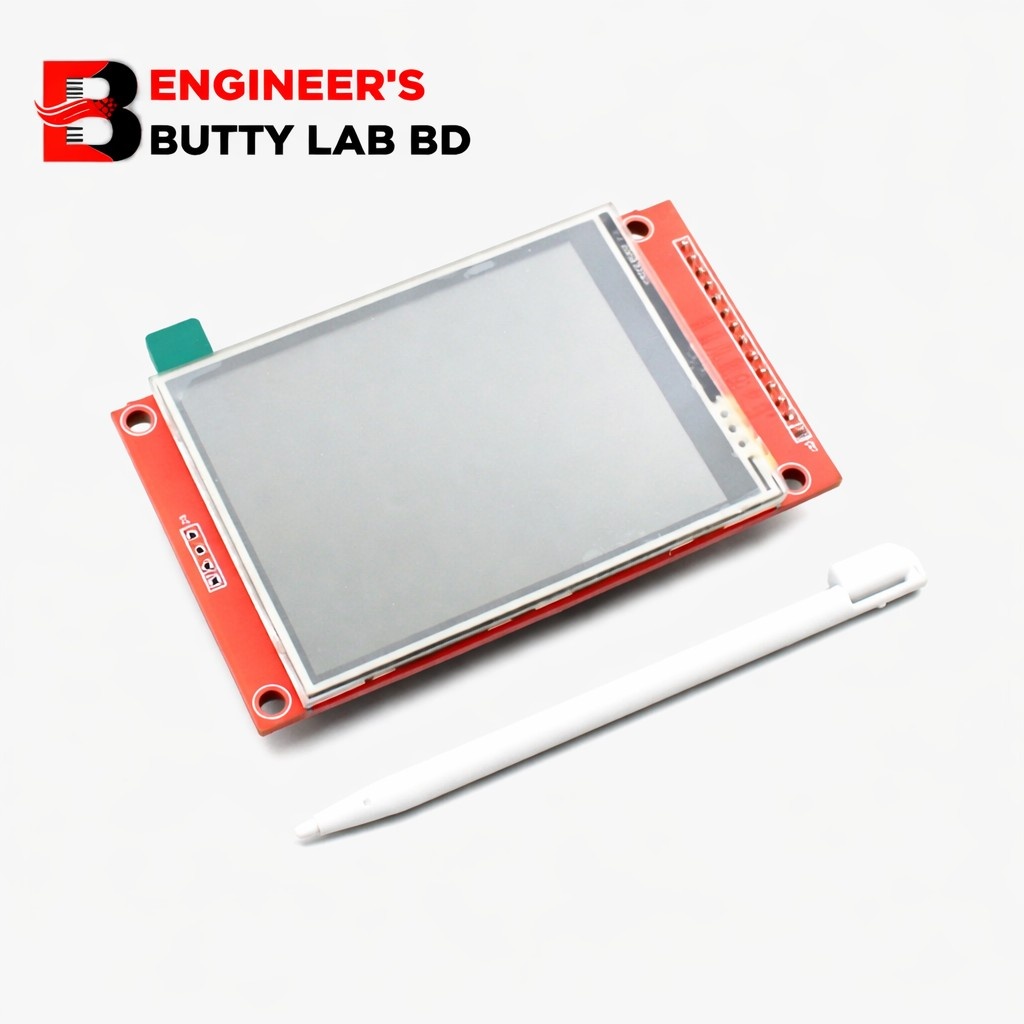

🖥️ TFT LCD 2.8″ 240×320 RGB SPI Display with Touchscreen

Full Technical Description

📌 Overview

The 2.8 inch TFT LCD Display is a full-color graphical display module featuring:

• 📏 2.8-inch screen size

• 🎨 240 × 320 pixel resolution (QVGA)

• 🌈 RGB 65K color support

• 🔄 SPI communication interface

• ✍️ Resistive touchscreen panel

It is widely used in embedded systems, Arduino projects, IoT devices, industrial interfaces, and DIY electronics projects.

📐 Display Specifications

🎨 Display Features

✔ Full RGB color display
✔ High brightness
✔ Good color contrast
✔ Smooth graphics rendering
✔ Fast refresh rate

Unlike character LCDs, this display can show:

• Images

• Icons

• Custom fonts

• Graphs

• Animations

• UI elements

✍️ Touchscreen Specifications

• Touch Type: Resistive touch panel

• Touch Detection: Pressure-based

• Touch Points: Single touch

• Touch Controller: XPT2046 (common)

Resistive touch works with:

• Finger

• Stylus

• Pen tip

It works even with gloves.

🔌 Interface & Communication

🧠 SPI Interface

The module uses SPI (Serial Peripheral Interface) for communication.

Common SPI Pins:

SPI allows:

• Fast data transfer

• Simple wiring

• Efficient graphics control

🔋 Electrical Specifications

• Operating Voltage: 3.3V – 5V (model dependent)

• Logic Level: Usually 3.3V (some boards include level shifting)

• Power Consumption: Moderate

• Backlight: White LED

📏 Physical Specifications

• PCB Color: Usually Red or Blue

• Mounting Holes: 4 corners

• Compact and lightweight

• Comes with stylus (usually)

🧩 Compatible Boards

✅ Arduino UNO
✅ Arduino Mega
✅ ESP8266
✅ ESP32
✅ STM32
✅ Raspberry Pi
✅ PIC Microcontroller

🛠 Working Principle

1. Microcontroller sends graphical data via SPI.

2. Display driver IC processes pixel data.

3. RGB subpixels generate required colors.

4. Backlight illuminates the screen.

5. Touch panel detects pressure input and sends coordinates.

🎯 Advantages

✔ Full color graphics
✔ Touch support
✔ Compact size
✔ Ideal for GUI projects
✔ Faster than parallel displays
✔ Great for IoT interfaces

📦 Applications

• Smart home control panels

• Industrial monitoring systems

• Portable devices

• Data loggers

• Medical instruments

• DIY touch interfaces

• Robotics dashboards

• Weather stations

🆚 TFT vs LCD Character Display

📘 Example Use Case

You can build:

• Digital oscilloscope

• Temperature monitoring system

• Touch-based menu system

• Smart door lock interface

• IoT dashboard
