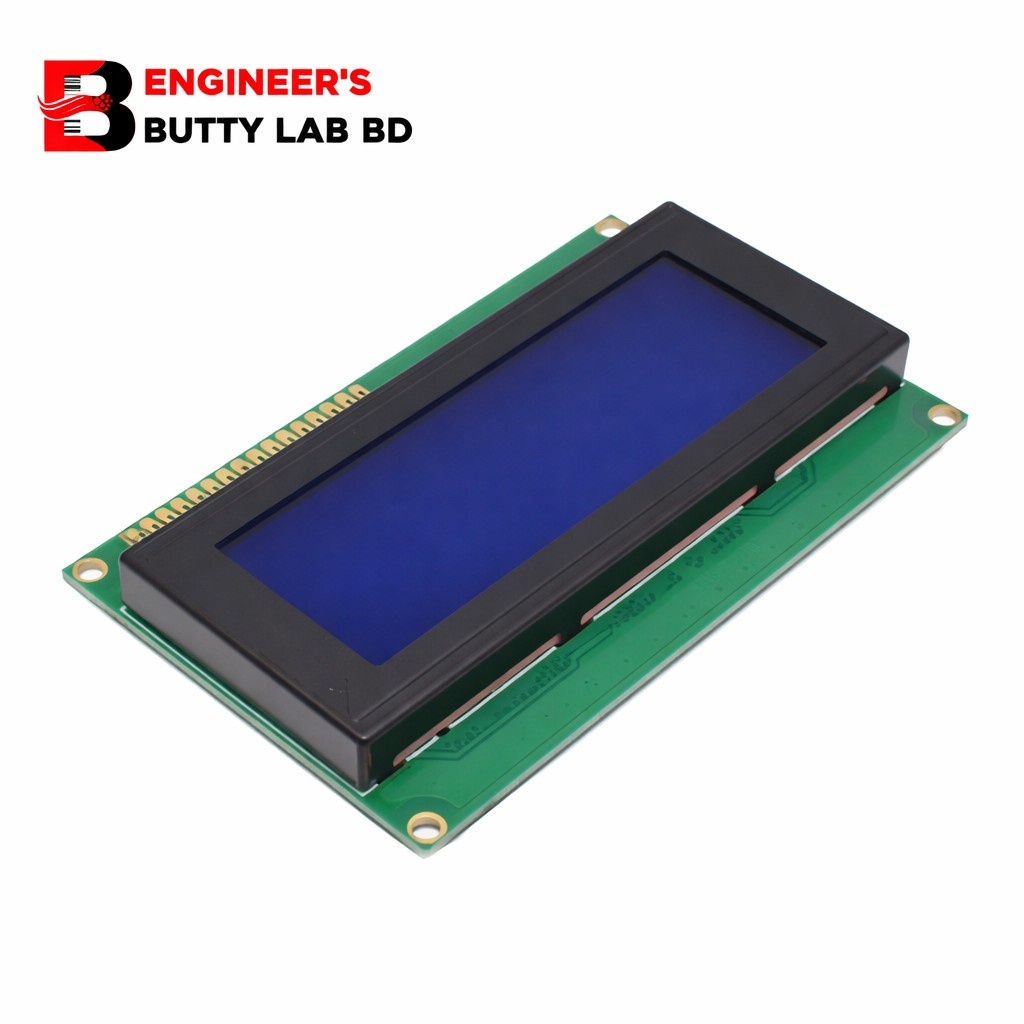

20×4 Character LCD Blue Backlight

📟 20×4 Character LCD Blue Backlight – Full Description

🔹 What is 20×4 LCD?

A 20×4 Character LCD is an alphanumeric display module capable of showing:

• 20 characters per line

• 4 lines

• Total 80 characters at a time

It is widely used in embedded systems, Arduino projects, industrial control panels, measurement devices, and automation systems.

🔹 Display Features

• Display Type: Alphanumeric (Character based)

• Characters per Line: 20

• Number of Lines: 4

• Total Characters: 80

• Character Size: 5×8 dot matrix (standard)

• Backlight Color: Blue

• Text Color: White or light grey (depending on model)

The blue LED backlight provides high contrast, making it readable in low-light environments.

🔹 Electrical Specifications

• Operating Voltage: 5V DC (Most common)

• Logic Level: TTL Compatible

• Current Consumption:

  • Logic: ~1–2mA

  • Backlight: ~15–25mA

• Controller IC: Usually HD44780 compatible

The HD44780 controller is industry standard and supported by:

• Arduino

• Raspberry Pi (with interface)

• PIC

• AVR

• ARM

• 8051 Microcontrollers

🔹 Pin Configuration (16 Pins Standard)

It can operate in:

• 8-bit mode

• 4-bit mode (most common to save pins)

🔹 Physical Specifications

• PCB Color: Green

• Display Area: Rectangular

• Mounting Holes: 4 corner holes

• Dimensions (Approx):

  • Length: ~98mm

  • Width: ~60mm

  • Height: ~13mm

• Viewing Angle: 6 o’clock or 12 o’clock type (model dependent)

🔹 Advantages

✔ Easy to interface
✔ Low power consumption
✔ Reliable and long lifespan
✔ Cost-effective
✔ Excellent readability with blue backlight

🔹 Common Applications

• Industrial automation panels

• Digital meters

• Medical devices

• Security systems

• Temperature & humidity monitors

• Arduino projects

• Robotics

• Educational kits

🔹 Why Blue Backlight?

The blue backlight:

• Improves visibility in dark conditions

• Gives professional and premium look

• Enhances contrast with white characters

🔹 Working Principle

The LCD works using:

• Liquid Crystal Technology

• Voltage-controlled light polarization

• LED backlight illumination

• Character generation using built-in ROM

Characters are stored in internal memory and displayed via dot matrix patterns.
