Water Level Sensor

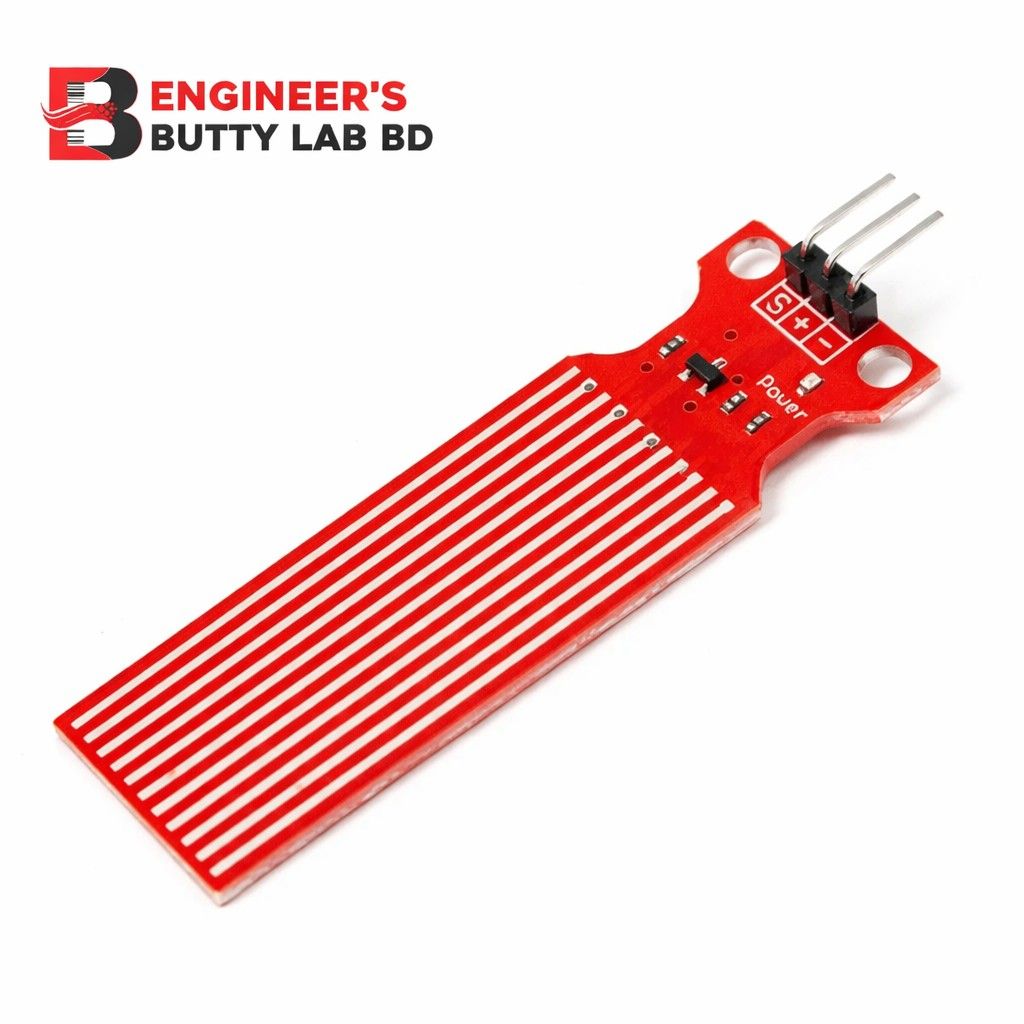

Water Level Sensor Module

The Water Level Sensor Module is an electronic sensor designed to detect and measure the presence and level of water or other conductive liquids. It works by sensing changes in electrical conductivity when water comes into contact with the exposed conductive traces on the sensor surface. This sensor is widely used in water monitoring, automation, and IoT-based applications.

Working Principle

The sensor consists of multiple parallel conductive traces arranged on a PCB.

• When water touches the sensor, it bridges the traces.

• This reduces resistance and changes the output voltage.

• The output signal varies according to the water level or depth.

• The signal can be read as analog data by a microcontroller.

The more the sensor is submerged, the higher the conductivity and output signal.

Key Features

• Simple and reliable water detection

• Measures water level proportionally

• Compact and lightweight design

• Low power consumption

• Easy interface with microcontrollers

• Cost-effective solution

Technical Specifications

• Operating Voltage: 3.3 V – 5 V DC

• Output Type: Analog

• Current Consumption: < 20 mA

• Material: PCB with exposed copper traces

• Liquid Type: Conductive liquids (water)

Pin Configuration

• S (Signal): Analog output

• + (VCC): Power supply

• – (GND): Ground

Applications

• Water tank level monitoring

• Overflow and leakage detection

• Rain detection systems

• Smart irrigation systems

• Washing machines and appliances

• Industrial liquid monitoring

• Arduino, ESP32, Raspberry Pi projects

Advantages

• Simple construction and easy use

• Provides real-time water level data

• Works well with analog inputs

• Low cost and beginner-friendly

• Suitable for DIY and academic projects

Limitations

• Not suitable for non-conductive liquids

• Prolonged exposure to water may cause corrosion

• Requires calibration for accurate readings

Conclusion

The Water Level Sensor Module is an efficient and economical solution for detecting and monitoring water levels in various applications. Its simple working principle, analog output, and compatibility with popular microcontrollers make it an excellent choice for automation, IoT, and educational projects.
