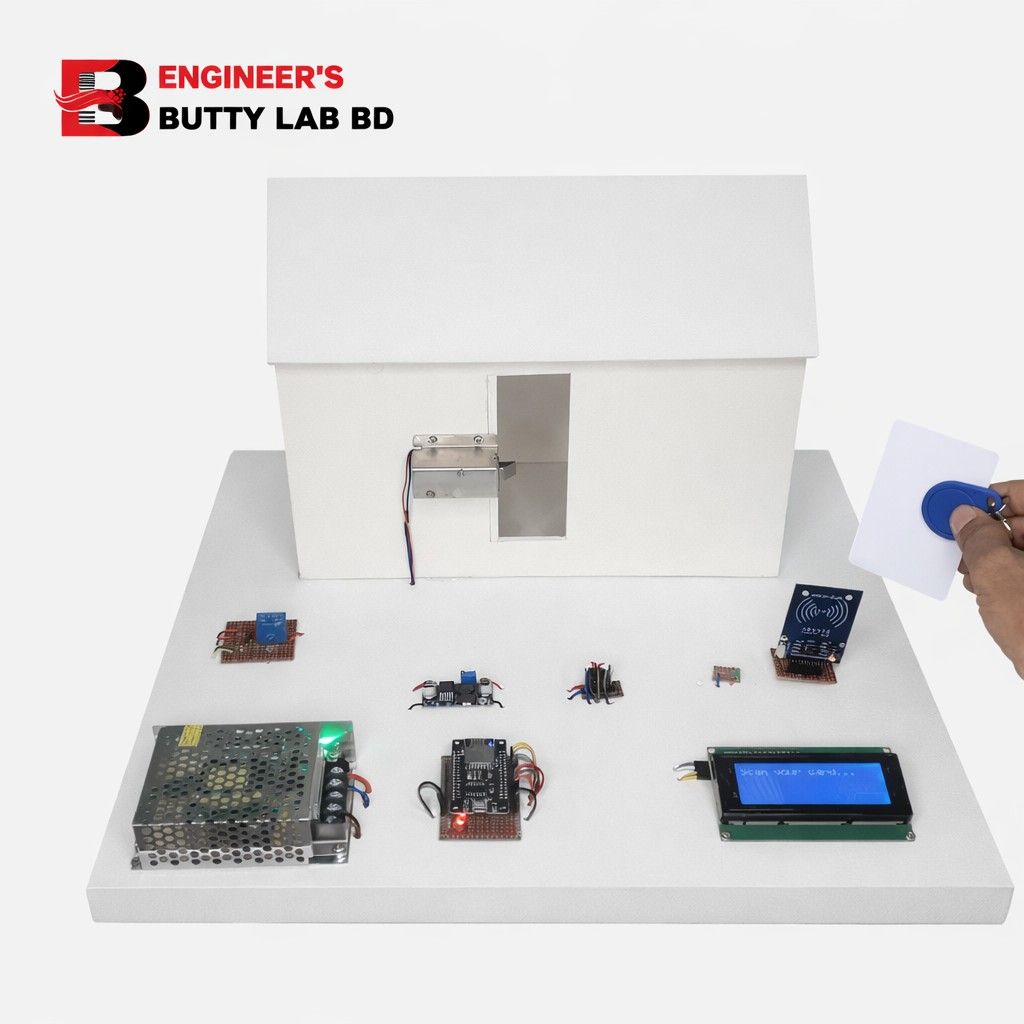

RFID Based Door Lock Security System

RFID Based Door Lock Security System – Full Description

The RFID Based Door Lock Security System is a smart and reliable access control solution designed to enhance security using Radio Frequency Identification (RFID) technology. This system allows authorized users to unlock a door by simply scanning a valid RFID card or tag, eliminating the need for traditional keys and reducing the risk of unauthorized access.

Working Principle

The system operates by comparing the unique ID of an RFID card with pre-stored authorized IDs in the microcontroller. When a valid card is detected, the controller activates an electromagnetic/solenoid door lock, allowing the door to open. If an invalid card is scanned, access is denied and the door remains locked. Real-time system status and user messages are displayed on an LCD screen.

Main Components

• RFID Reader Module (RC522) – Reads RFID card/tag information

• RFID Card/Tag – Used for authentication

• Microcontroller (Arduino / ESP-based) – Controls the entire system logic

• Solenoid Door Lock – Provides physical locking mechanism

• Relay Module – Drives high-power components safely

• LCD Display (16×2) – Displays access status and instructions

• Power Supply Module – Provides stable power to all components

Key Features

• Keyless and contactless door access

• High security using unique RFID identifiers

• Fast and reliable response time

• Easy to operate and user-friendly interface

• Low power consumption

• Compact and scalable design

• Can be upgraded with IoT, GSM, or Wi-Fi modules

Applications

• Home security systems

• Office and corporate access control

• Laboratories and server rooms

• Educational institutions

• Smart home automation projects

Advantages

• Eliminates the need for physical keys

• Reduces unauthorized entry

• Cost-effective and efficient security solution

• Easy to implement and maintain

• Suitable for academic and industrial projects

Project Highlights

This project demonstrates a practical implementation of embedded systems and security technology. It is ideal for engineering students, final year projects, and IoT-based security research, offering real-world applicability with scope for future enhancements such as mobile app control, cloud logging, or biometric integration.
