Android Based & Bluetooth Controlled Antenna Positioning System

Android Based & Bluetooth Controlled Antenna Positioning System

The Android Based & Bluetooth Controlled Antenna Positioning System is a smart and cost-effective solution designed to remotely control and accurately position an antenna using an Android smartphone. This project integrates wireless communication, embedded control, and servo-based mechanical movement to achieve precise antenna alignment without manual intervention.

Project Overview

Accurate antenna positioning is crucial for achieving maximum signal strength in wireless communication systems such as radio transmission, TV reception, satellite communication, and IoT networks. Manual antenna adjustment is time-consuming, inaccurate, and inconvenient, especially in hard-to-reach locations.

This system solves the problem by allowing users to control antenna direction wirelessly using an Android mobile phone via Bluetooth. The antenna can be rotated smoothly to the desired angle, ensuring optimal signal reception or transmission.

The project is built around a microcontroller, servo motor mechanism, Bluetooth module, and a simple Android control interface, making it suitable for educational, research, and practical communication applications.

Working Principle

1. The user sends control commands (left, right, angle value, etc.) from an Android application via Bluetooth.

2. The Bluetooth module receives the wireless commands and forwards them to the microcontroller.

3. The microcontroller processes the command and generates appropriate control signals.

4. A servo motor rotates the antenna structure to the required position with high accuracy.

5. The current status or command information is displayed on an LCD screen for monitoring.

This closed-loop operation allows smooth, precise, and repeatable antenna positioning.

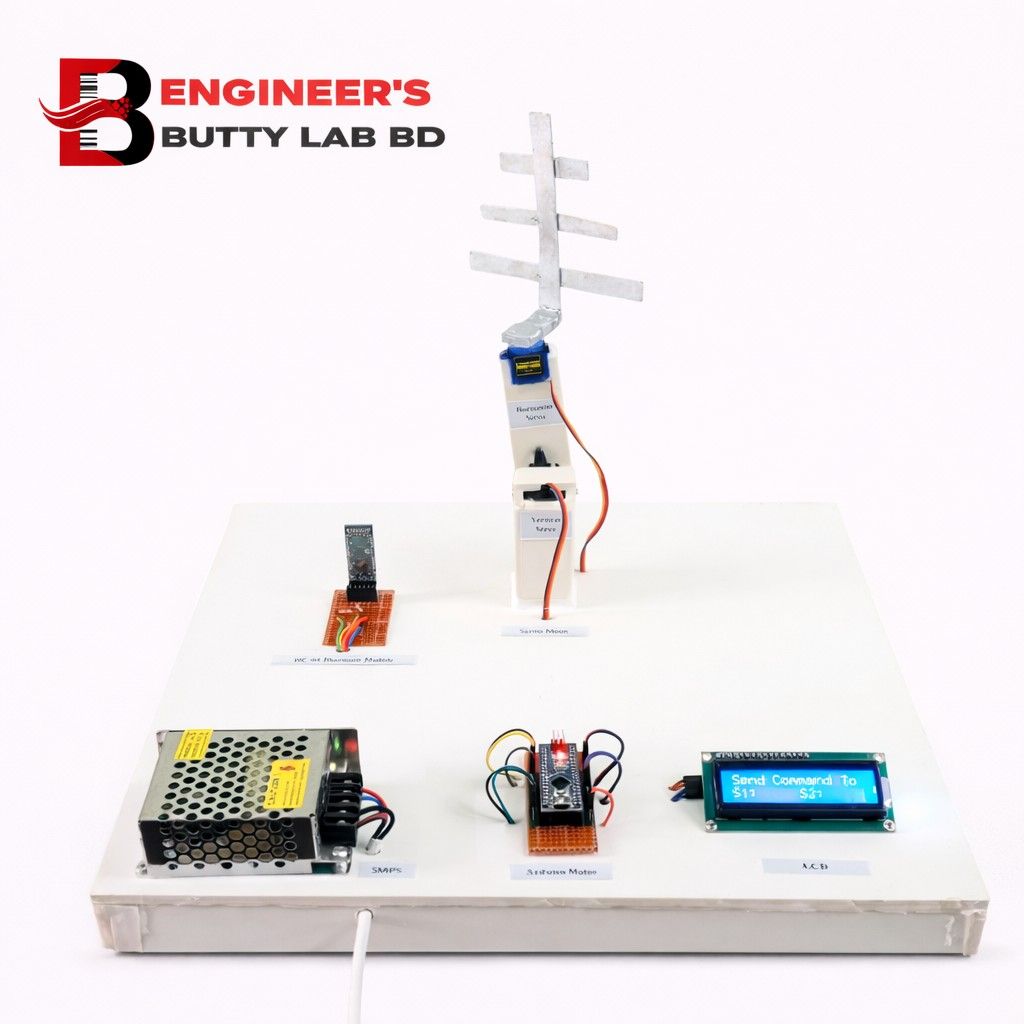

Key Components

• Microcontroller (Arduino / Compatible Board) – Central control unit

• Bluetooth Module (HC-05 / HC-06) – Enables wireless communication with Android device

• Servo Motor – Provides precise angular movement of the antenna

• Directional Antenna Model – Mounted on servo for positioning

• LCD Display (16×2) – Displays command/status information

• SMPS / Power Supply Unit – Provides stable power to the system

• Android Smartphone – Acts as the remote controller

• Mechanical Mount & Base – Supports antenna and motor assembly

Features

• Wireless antenna control using Android phone

• Bluetooth-based low-power communication

• Precise angular positioning with servo motor

• Real-time command/status display on LCD

• Compact and low-cost design

• Easy installation and operation

• No manual antenna adjustment required

Applications

• Radio and TV antenna alignment

• Satellite dish positioning (basic model)

• Wireless communication laboratories

• IoT and networking experiments

• Remote signal optimization systems

• Engineering student demonstration projects

Advantages

• Eliminates manual antenna adjustment

• Improves signal strength and reception quality

• Saves time and effort

• Low implementation cost

• Portable and user-friendly

• Suitable for automation and smart communication systems

Conclusion

The Android Based & Bluetooth Controlled Antenna Positioning System demonstrates how wireless control and embedded systems can be combined to automate a traditionally manual task. This project is highly suitable for engineering students, communication system studies, and smart device applications. It provides a practical understanding of Bluetooth communication, servo motor control, and Android-based automation while delivering a reliable and efficient antenna positioning solution.
