Rain Drop Sensor – Analog & Digital Output

Rain Drop Sensor – Analog & Digital Output

The Rain Drop Sensor Module is an electronic sensor kit used to detect rain, water droplets, and surface moisture. It provides both analog (variable) and digital (threshold-based) outputs, making it ideal for weather monitoring and automation projects such as smart irrigation, automatic wipers, and rain alerts.

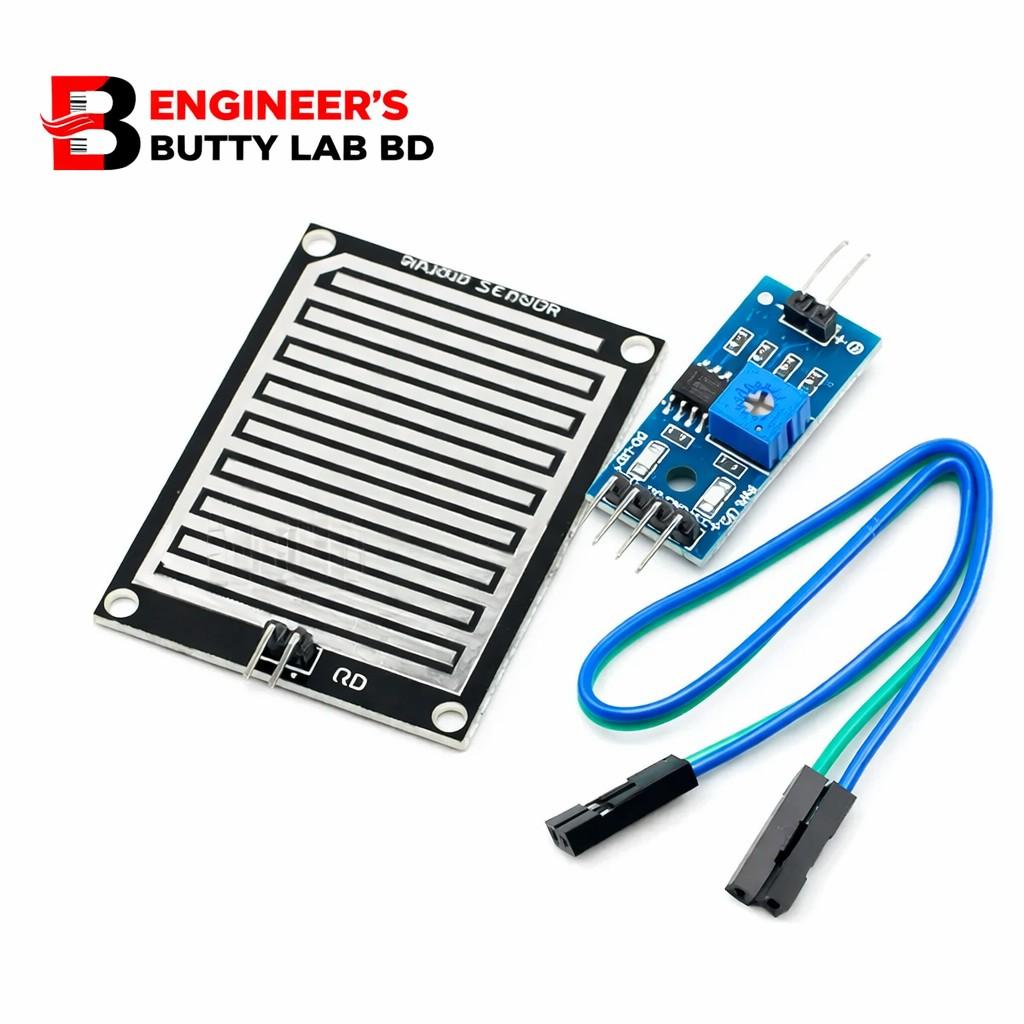

This kit typically includes:

1. Rain detection plate (sensor board)

2. Control module (LM393 comparator board)

3. Connecting wires (jumper cable)

Working Principle

The rain sensor plate has exposed conductive tracks. When water droplets fall on the plate:

• Water forms a conductive path between the tracks.

• This reduces resistance and changes voltage output.

• The control module processes the signal:

✅ Analog Output (AO):
Gives a continuous value depending on how wet the plate is (more water → stronger signal).

✅ Digital Output (DO):
Gives a HIGH/LOW signal based on a set threshold. The threshold can be adjusted using the onboard potentiometer.

Key Features

• Detects rain, droplets, and moisture

• Analog + Digital output available

• Sensitivity adjustable using potentiometer

• LED indicators for power and output status

• Easy interface with Arduino / ESP32 / Raspberry Pi

• Low power and compact design

Specifications

• Operating Voltage: 3.3V – 5V DC

• Comparator IC: LM393 (common)

• Outputs:

  • AO: Analog output

  • DO: Digital output (threshold)

• Current Consumption: < 20mA (typical)

• Sensitivity Control: Onboard potentiometer

• Indicator LEDs: Power LED + Output LED

Pin Configuration (Control Module)

• VCC: Power supply

• GND: Ground

• AO: Analog output

• DO: Digital output

(Sensor plate connects to the control module via 2-pin header)

Applications

• Rain alert systems

• Smart irrigation control

• Automatic windshield wiper projects

• Weather monitoring station

• Roof leakage and water detection

• Smart home automation

• Outdoor IoT projects

Advantages

• Dual output (analog + digital) gives flexibility

• Adjustable sensitivity for different environments

• Simple circuit and beginner-friendly

• Works in real time

• Low cost and widely used in student projects

Limitations

• Sensor plate may corrode over time if left wet continuously

• Needs cleaning for stable readings

• Wind and dust can affect surface behavior

Conclusion

The Rain Drop Sensor Module (Analog & Digital Output) is an efficient and affordable solution for detecting rain and moisture. Its adjustable sensitivity and dual-output system make it suitable for automation, IoT, and weather-based control projects.
