L7812 Voltage Regulator

L7812 Voltage Regulator – Full Description

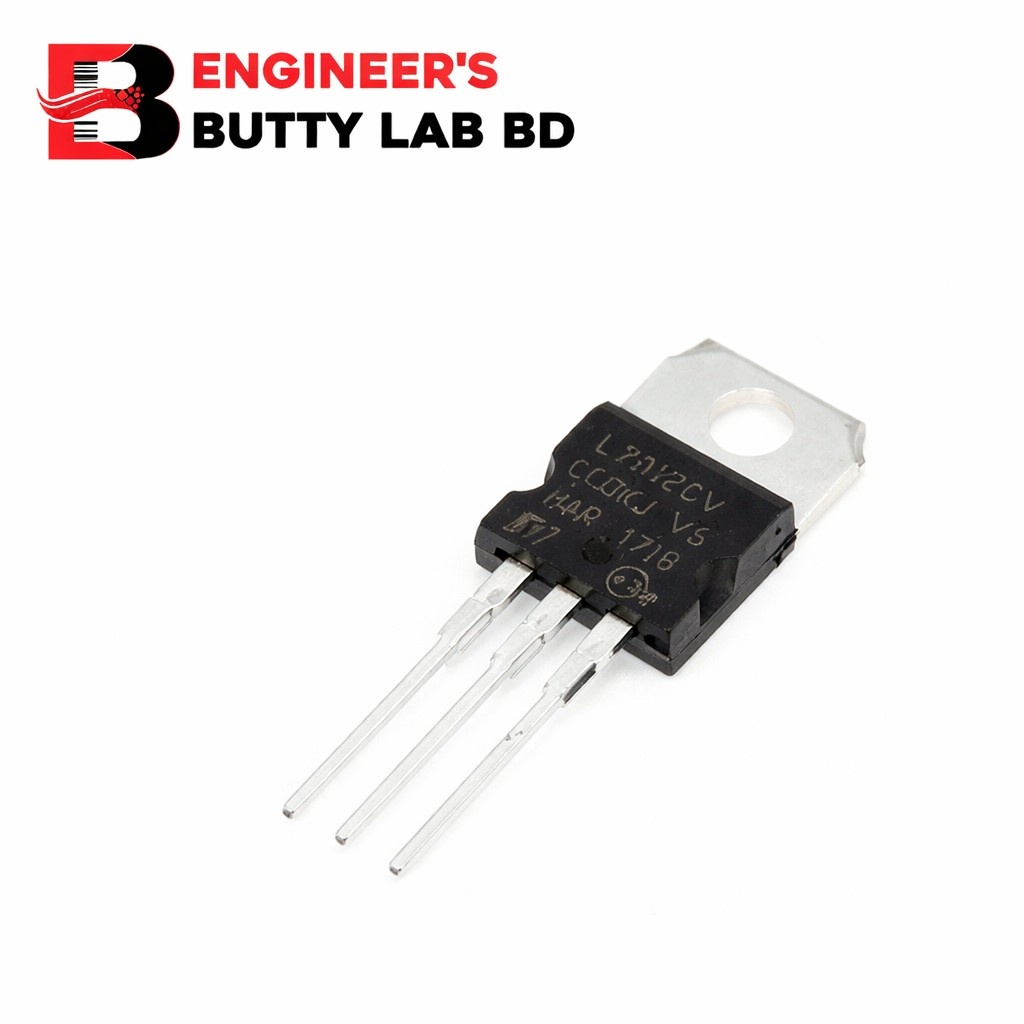

The L7812 is a fixed +12V linear voltage regulator from the well-known 78xx series of positive voltage regulators. It is designed to provide a stable and regulated 12V DC output from a higher DC input voltage.

It is most commonly available in a TO-220 package with three pins and a metal tab for heat dissipation.

🔧 Key Specifications

• Output Voltage: +12V (Fixed)

• Output Current: Up to 1A (with proper heatsink)

• Input Voltage Range: 14V to 35V DC

• Dropout Voltage: Approximately 2V

• Package Type: TO-220

• Number of Pins: 3

• Operating Temperature Range: 0°C to 125°C

• Built-in Protection:

  • Thermal shutdown

  • Short circuit protection

  • Safe operating area protection

📌 Pin Configuration (Front View – Text Facing You)

👉 The metal tab is internally connected to Ground (GND).

⚙️ Working Principle

The L7812 is a linear voltage regulator, meaning:

• It reduces excess voltage as heat.

• It maintains a constant 12V output even if input voltage or load changes slightly.

Example:

If:

• Input = 18V

• Output = 12V

Then:

• Extra 6V is converted into heat.

Power Dissipation Formula:

$$Power=(Vin-Vout)\times LoadCurrent$$

🔌 Recommended Connection Circuit

For stable operation:

• Add a 0.33µF capacitor between Input and GND.

• Add a 0.1µF capacitor between Output and GND.

This reduces noise and improves stability.

📦 Common Applications

✅ 12V DC power supplies
✅ Amplifier circuits
✅ Motor driver circuits
✅ Automotive electronics
✅ Industrial control systems
✅ Powering relays and 12V modules

📊 Advantages

✔ Simple to use
✔ No external adjustment required
✔ Reliable and stable output
✔ Built-in safety protections
✔ Low cost

⚠️ Important Notes

• Always ensure input voltage is at least 2V higher than 12V.

• Use a heatsink if load current is high.

• Not efficient for battery-powered systems due to heat loss.

• For better efficiency, consider a DC-DC buck converter.

🔍 L7812 vs L7805

💡 Example Use Case

If you have a 24V DC supply and need 12V:

• Connect 24V to Input

• Connect Ground

• Take 12V from Output

• Add recommended capacitors

• Use heatsink if load current is high
