L7805 Voltage Regulator 5V

L7805 Voltage Regulator (5V) – Full Description

The L7805 is a fixed +5V linear voltage regulator from the popular 78xx series of regulators. It is widely used in electronic circuits to provide a stable 5V DC output from a higher DC input voltage.

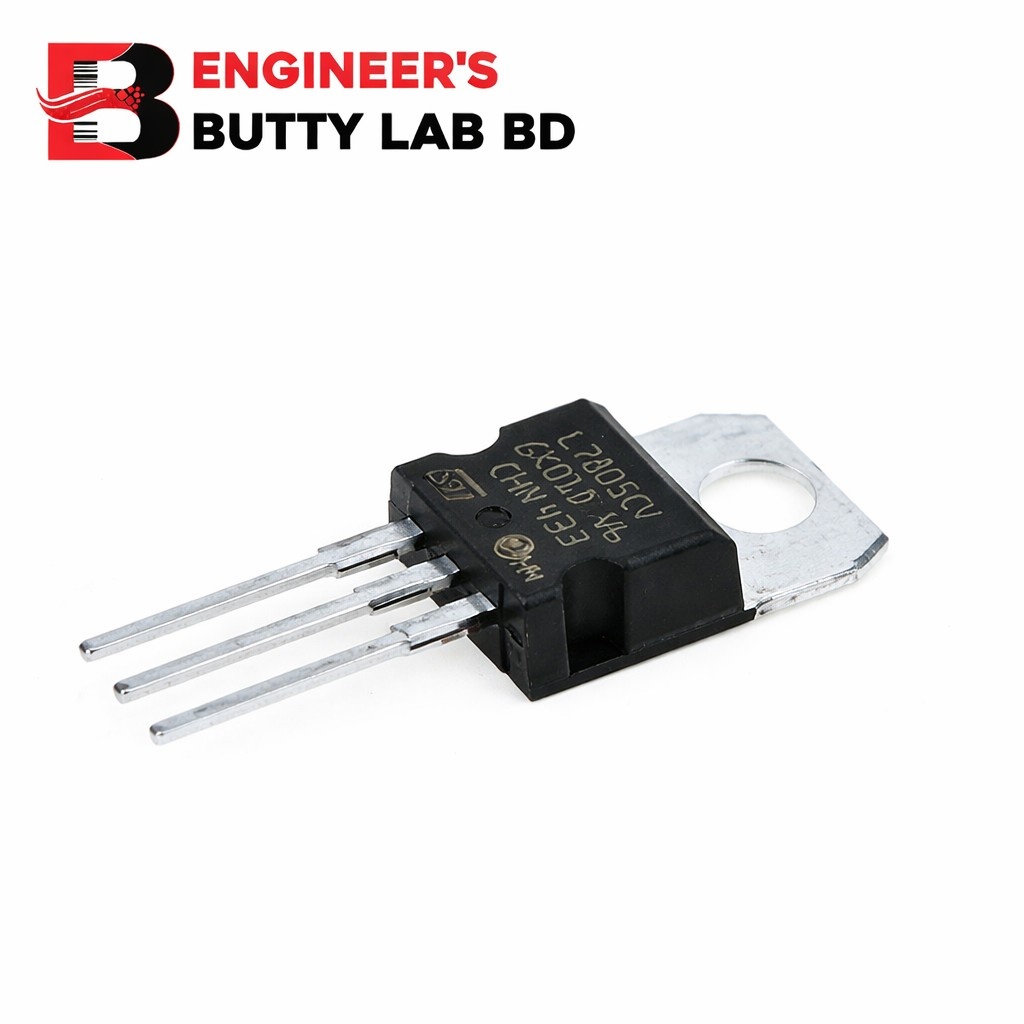

It is commonly available in a TO-220 package with three pins and a metal tab for heat dissipation.

🔧 Key Specifications

• Output Voltage: +5V (Fixed)

• Output Current: Up to 1A (with proper heatsink)

• Input Voltage Range: 7V to 35V DC

• Dropout Voltage: Approx. 2V

• Package Type: TO-220

• Number of Pins: 3

• Operating Temperature: 0°C to 125°C

• Built-in Protection:

  • Thermal shutdown

  • Short circuit protection

  • Safe operating area protection

📌 Pin Configuration (Front View – Text Facing You)

👉 The metal tab is internally connected to Ground (GND).

⚙️ Working Principle

The L7805 works as a linear regulator, meaning:

• It reduces excess input voltage as heat.

• It maintains a constant 5V output regardless of small variations in input voltage or load.

Example:

• Input = 12V

• Output = 5V

• Extra 7V is dissipated as heat.

🔌 Typical Connection Circuit

To ensure stable operation:

• Connect a 0.33µF capacitor between Input and GND.

• Connect a 0.1µF capacitor between Output and GND.

This helps reduce noise and voltage spikes.

📦 Common Applications

✅ Arduino power supply
✅ Microcontroller circuits
✅ Sensor modules
✅ 5V logic circuits
✅ Power supply boards
✅ Embedded systems

📊 Advantages

✔ Simple to use
✔ No external adjustment required
✔ Reliable and stable output
✔ Built-in protection features
✔ Low cost

⚠️ Important Notes

• If input voltage is much higher than 7V and load current is high, use a heatsink.

• Not efficient for battery-powered systems (because it wastes power as heat).

• For high efficiency, consider using a DC-DC buck converter instead.

🔍 Difference Between L7805 and LM7805

They are functionally the same.
“L7805” and “LM7805” are just manufacturer naming differences.

💡 Example Use Case

If you have a 12V battery and need 5V to power an Arduino:

• Connect 12V to Input

• Connect Ground

• Take 5V from Output

• Add recommended capacitors

• Use heatsink if needed
