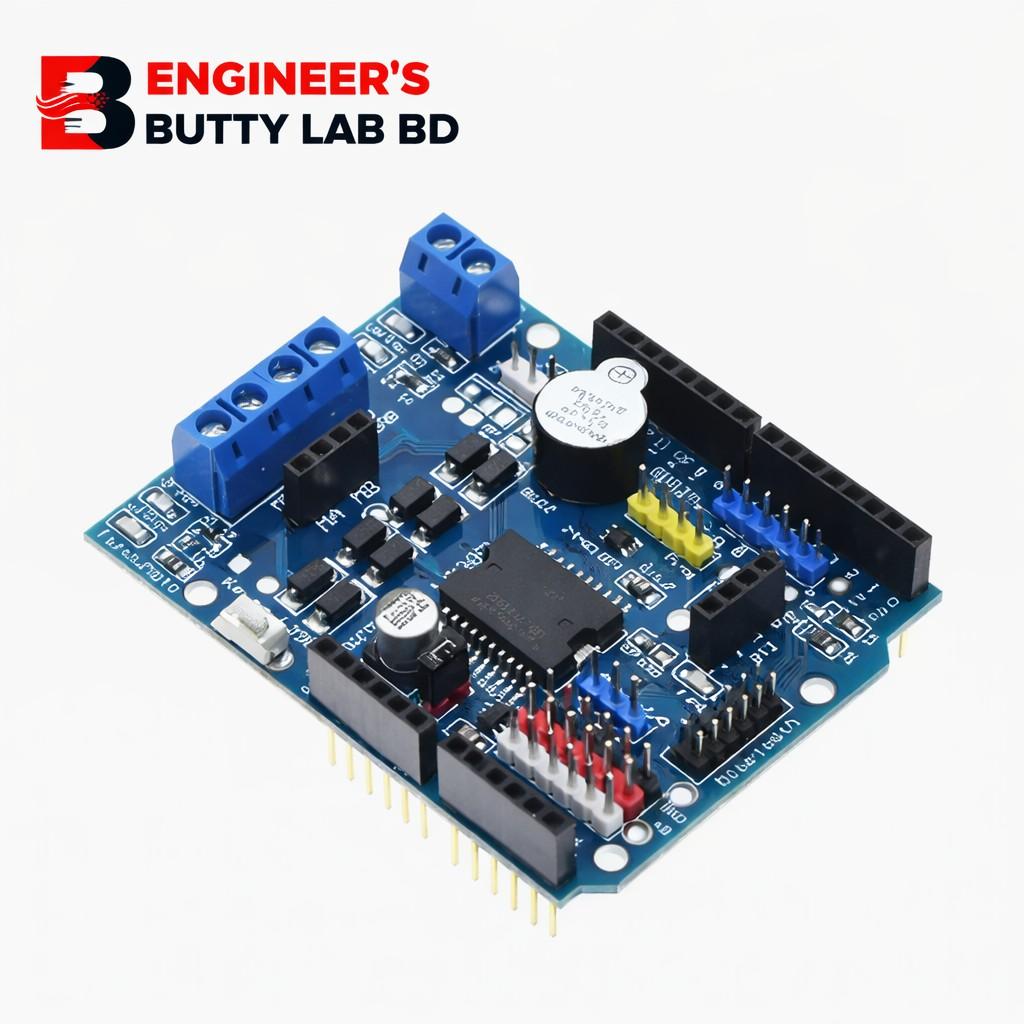

🔵 L298P Motor Shield Driver Module (Arduino Compatible)

📌 Product Overview

The L298P Motor Shield Driver Module is a high-performance motor control shield designed for Arduino Uno and compatible boards. Based on the powerful L298P dual full H-Bridge driver IC, this shield allows precise control of DC motors and stepper motors with speed and direction management.

It is ideal for robotics, automation systems, smart vehicles, and educational electronics projects.

⚙️ Key Features

• ✅ Based on L298P Dual H-Bridge Motor Driver IC

• ✅ Controls up to 2 DC motors

• ✅ Supports 1 stepper motor

• ✅ PWM speed control capability

• ✅ High current output (up to 2A per channel)

• ✅ Built-in current sensing

• ✅ Onboard power screw terminals

• ✅ Arduino Uno compatible shield layout

• ✅ Stackable design

• ✅ Overheat protection (with proper cooling)

🔧 Technical Specifications

🔌 Pin Configuration

🔹 Motor Outputs:

• OUT1 & OUT2 → Motor A

• OUT3 & OUT4 → Motor B

🔹 Power Input:

• External Motor Supply (Vin)

• GND

🔹 Control:

• Direction pins (Motor A & B)

• PWM pins for speed control

• Current sensing output pins

🎯 Applications

• 🤖 Robot car projects

• 🚗 Smart vehicles

• 🏭 Automation control systems

• 🛠 CNC mini machines

• 🧪 Engineering & robotics lab

• 🎓 Educational Arduino projects

💡 Advantages

• Easy plug-and-play with Arduino

• Compact shield design

• Reliable motor control

• High current handling

• Supports PWM speed adjustment

• Built-in protection features

📦 Package Includes

• 1 × L298P Motor Shield Driver Module

⚠️ Important Notes

• Use proper power supply within recommended voltage range.

• Ensure adequate cooling when driving high current motors.

• Always connect common ground between Arduino and motor supply.

• Not suitable for very high-power industrial motors.
