🔰 L298N DC Motor Driver Module (Green PCB)

📌 Product Overview

The L298N DC Motor Driver (Green Version) is a dual H-Bridge motor control module designed to drive DC motors and stepper motors efficiently. Built around the powerful L298N motor driver IC, this module allows independent control of two DC motors or one stepper motor with speed and direction control.

The green PCB version offers a compact layout with reliable components, making it ideal for robotics, automation, and DIY electronics projects.

⚙️ Key Features

• ✅ Based on L298N Dual H-Bridge IC

• ✅ Controls 2 DC motors independently

• ✅ Supports 1 Stepper motor

• ✅ High current capacity (up to 2A per channel)

• ✅ Wide motor voltage range (5V–35V)

• ✅ Onboard 5V regulator (with jumper control)

• ✅ Large heat sink for efficient cooling

• ✅ PWM speed control support

• ✅ Screw terminals for secure wiring

• ✅ Compact green PCB design

🔧 Technical Specifications

🔌 Pin Description

🔹 Power Section

• +12V / Vs → Motor Power Supply

• GND → Ground

• 5V → Logic Supply (if regulator disabled)

🔹 Motor Outputs

• OUT1 & OUT2 → Motor A

• OUT3 & OUT4 → Motor B

🔹 Control Pins

• IN1, IN2 → Motor A Direction

• IN3, IN4 → Motor B Direction

• ENA → Motor A Speed (PWM)

• ENB → Motor B Speed (PWM)

🎯 Applications

• 🤖 Robot car projects

• 🚗 Smart vehicle systems

• 🏭 Automation machines

• 🛠 DIY motor control circuits

• 🧪 Engineering lab experiments

• ⚙ CNC mini projects

• 🔄 Conveyor and belt systems

💡 Advantages

• Reliable and stable motor control

• Easy interfacing with Arduino, ESP32, Raspberry Pi

• High power handling capability

• Built-in heat dissipation system

• Affordable and beginner-friendly

📦 Package Includes

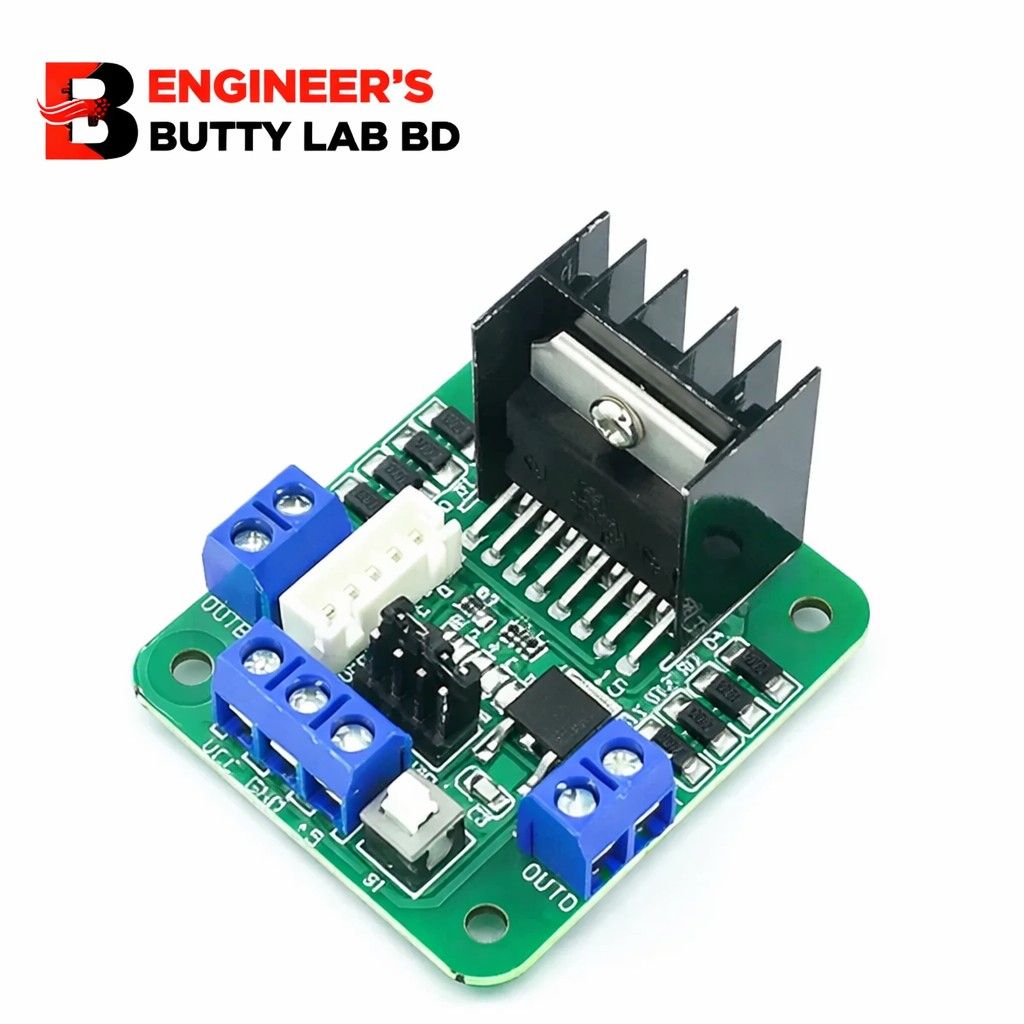

• 1 × L298N DC Motor Driver Module (Green PCB with Heat Sink)

⚠️ Important Notes

• Remove 5V regulator jumper if using motor voltage above 12V.

• Always connect common ground between controller and driver.

• Use proper heat ventilation for high current applications.

• Not recommended for heavy industrial high-power motors.
