JQ6500 USB MP3 Audio Player Module
General Specifications
- Model: JQ6500-16P USB MP3 Player Module
- Audio Format Support: MP3, WAV
- Supply Voltage: 3.2V – 5.0V DC
- Recommended Voltage: 5V DC
- Communication Interface: UART Serial (TX/RX)
- Storage: Built-in Flash Memory (varies by version: 8MB, 16MB, 32MB, etc.)
- USB Interface: Micro USB
- Speaker Output: Direct 8Ω Speaker Support
- Audio Output: DAC Left/Right (ADC_L, ADC_R)
- Operating Current: Typically < 20mA
- Control Methods: UART, Push Button, ADC Key
Original price was: 600৳ .580৳ Current price is: 580৳ .
10
People watching this product now!
Payment Methods:
Description
This module is a compact standalone MP3 player that can play audio files directly from its internal flash memory and can be controlled using push buttons, UART serial commands, or ADC key inputs.
Features
✔ Built-in MP3 decoder IC
✔ Directly drives an 8Ω speaker
✔ Supports serial control from Arduino, ESP32, Raspberry Pi
✔ Internal flash storage for audio files
✔ USB drag-and-drop audio upload
✔ Supports play, pause, next, previous, and volume control
✔ BUSY pin indicates playback status
Applications
- Voice Announcement Systems
- Talking Robots
- Smart Home Voice Alerts
- Security Alarm Systems
- Interactive Projects
- Educational Electronics
- Arduino Audio Projects
- Raspberry Pi Sound Effects
- Elevator and Machine Voice Prompts
Arduino Connection Example
| JQ6500 | Arduino UNO |
|---|---|
| DC-5V | 5V |
| GND | GND |
| TX | D10 (RX) |
| RX | D11 (TX) |
| SPK+ | Speaker + |
| SPK- | Speaker – |

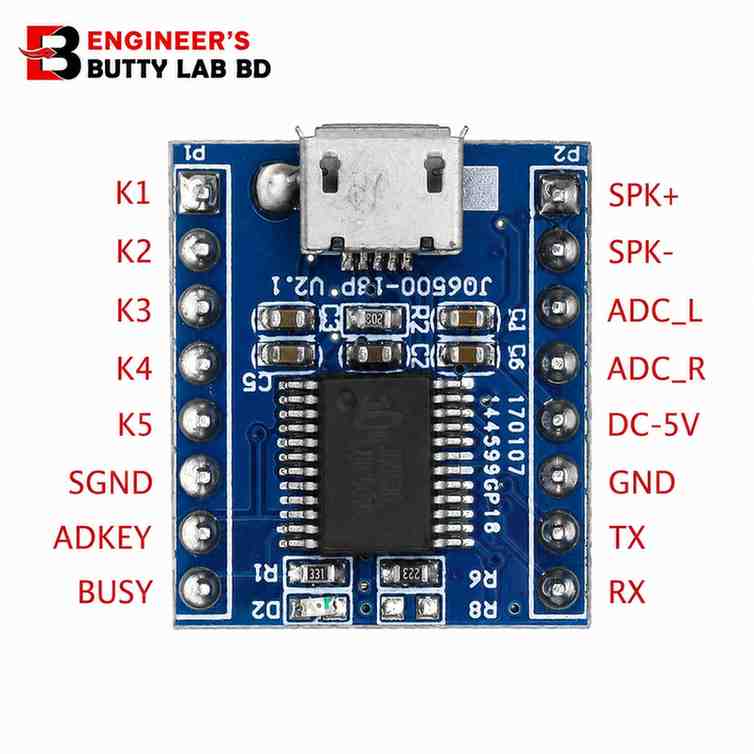

Pin Description
| Pin | Function |
|---|---|
| K1 | Previous Track / Function Key |
| K2 | Play / Pause |
| K3 | Next Track |
| K4 | Volume Down |
| K5 | Volume Up |
| SGND | Signal Ground |
| ADKEY | Analog Key Input |
| BUSY | Playback Status Output |
| SPK+ | Speaker Positive Output |
| SPK- | Speaker Negative Output |
| ADC_L | Left Audio Output |
| ADC_R | Right Audio Output |
| DC-5V | Power Input (+5V) |
| GND | Ground |
| TX | UART Transmit |
| RX | UART Receive |
