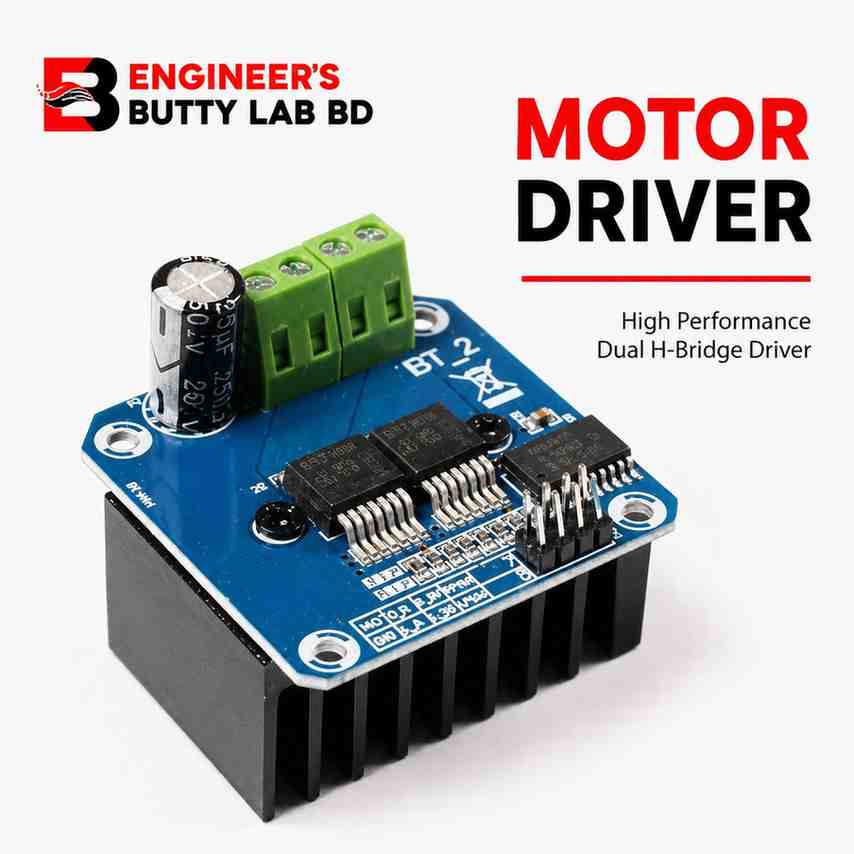

BTS7960 43A Motor Driver
BTS7960 (IBT-2) Motor Driver Specifications
| Parameter | Specification |
|---|---|
| Module Name | BTS7960 / IBT-2 Motor Driver |
| Driver IC | 2 × BTS7960B |
| Motor Type | DC Brushed Motor |
| Operating Voltage | 5.5V – 27V DC |
| Logic Voltage | 3.3V – 5V |
| Continuous Current | Up to 43A |
| Peak Current | Up to 50A |
| PWM Frequency | Up to 25 kHz |
| Control Method | PWM + Direction |
| Protection | Overcurrent, Overvoltage, Overtemperature |
| Efficiency | High MOSFET Efficiency |
| Interface | 6-pin Control Header |
| Cooling | Aluminum Heat Sink |
Original price was: 510৳ .480৳ Current price is: 480৳ .
18
People watching this product now!
Payment Methods:
Description
Pin Configuration
Power Terminal
| Pin | Description |
|---|---|
| B+ | Motor Supply Positive (5.5V–27V) |
| B- | Motor Supply Ground |
| M+ | Motor Output Positive |
| M- | Motor Output Negative |
Control Pins
| Pin | Description |
|---|---|
| RPWM | Forward PWM Input |
| LPWM | Reverse PWM Input |
| R_EN | Right Enable |
| L_EN | Left Enable |
| VCC | 5V Logic Supply |
| GND | Ground |
Features
- High current motor control (up to 43A)
- Supports PWM speed control
- Bidirectional motor rotation
- Built-in overheating protection
- Overcurrent protection
- Low power dissipation
- Compatible with Arduino, ESP32, ESP8266, Raspberry Pi, STM32, PLC
Typical Arduino Connection
| BTS7960 | Arduino |
|---|---|
| RPWM | D5 |
| LPWM | D6 |
| R_EN | D7 |
| L_EN | D8 |
| VCC | 5V |
| GND | GND |
Applications
- Electric Vehicles (EV)
- AGV Robots
- Solar Grass Cutter
- Automatic Guided Systems
- Conveyor Systems
- Antenna Positioning Systems
- Heavy Duty DC Motors
- Robotic Arms
- Wheelchair Motor Control
