Diode 1N5408
Specifications:
- Maximum Repetitive Peak Reverse Voltage (VRRM): 1000V.
- Maximum RMS voltage (VRMS): 700V.
- Maximum Average Forward Rectified Current(IF(AV)): 3A.
Original price was: 9৳ .6৳ Current price is: 6৳ .
254 in stock
254 in stock
Payment Methods:
Description
🔹 Product Overview
The 1N5408 is a high-current general-purpose rectifier diode designed for power supply and high-voltage applications. It is widely used for converting AC to DC in power circuits and provides reliable performance with a maximum repetitive reverse voltage of 1000V and forward current rating of 3A.
🔹 Key Features
-
Type: General Purpose Rectifier Diode
-
Maximum Reverse Voltage: 1000V
-
Forward Current: 3A
-
Axial Lead Package
-
High Surge Current Capability
-
Reliable and Durable Construction
🔹 Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1N5408 |
| Repetitive Peak Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage | 700V |
| Average Forward Current (IF) | 3A |
| Peak Surge Current (IFSM) | 200A (8.3ms single half sine wave) |
| Forward Voltage Drop (VF) | ~1.0V – 1.2V |
| Reverse Recovery Time | Standard recovery |
| Package Type | DO-201AD (Axial) |
| Operating Temperature | -55°C to +150°C |
🔹 Identification
-
Black cylindrical body
-
Silver band indicates Cathode
-
Printed marking: “1N5408” or similar
🔹 Applications
-
AC to DC rectification
-
Power supply circuits
-
Battery chargers
-
Inverters
-
SMPS (low-frequency section)
-
Reverse polarity protection
-
Industrial power control circuits
🔹 Advantages
✔ High voltage handling (1000V)
✔ Strong surge current capability
✔ Suitable for high-power applications
✔ Reliable and long service life
✔ Easy PCB mounting
🔹 Pin Configuration
-
Anode: Unmarked side
-
Cathode: Silver band side
🔹 Package Includes
-
1 × 1N5408 Rectifier Diode
Customer Reviews
Related Products

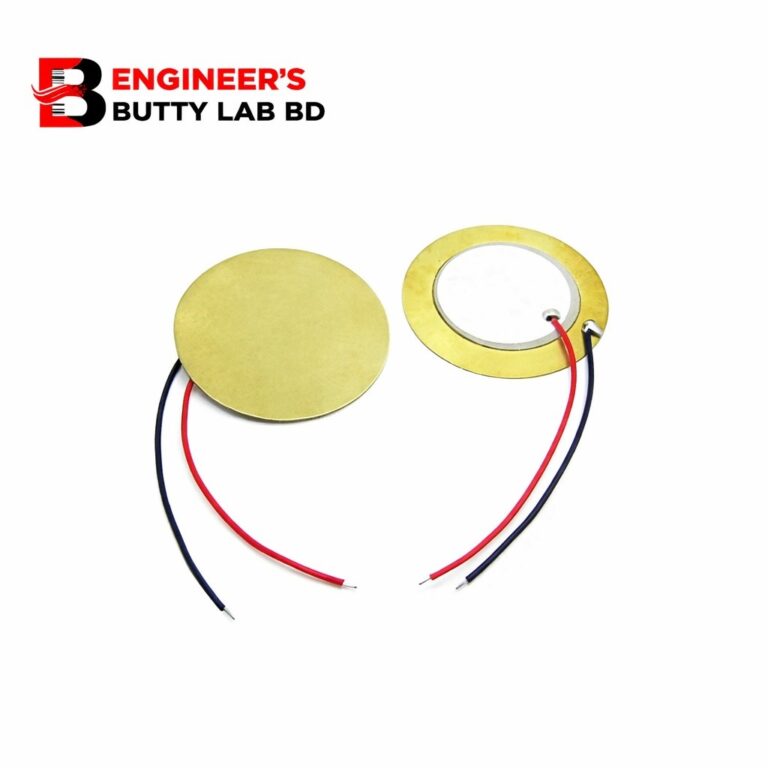

Piezo Element (Connected Wire) 35mm
In stock

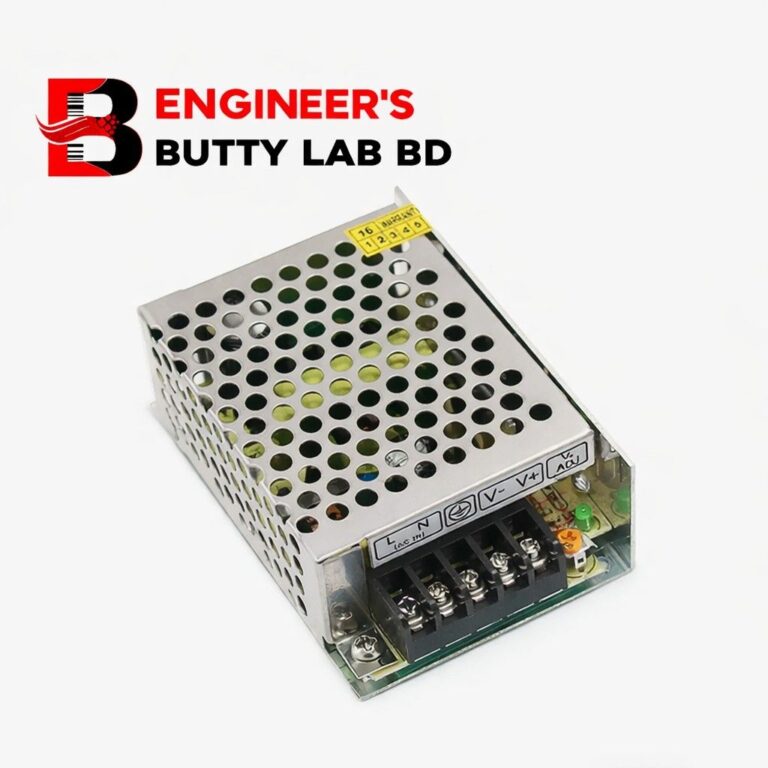

20W 5V 5A SMPS Power Supply Module Universal AC Input
