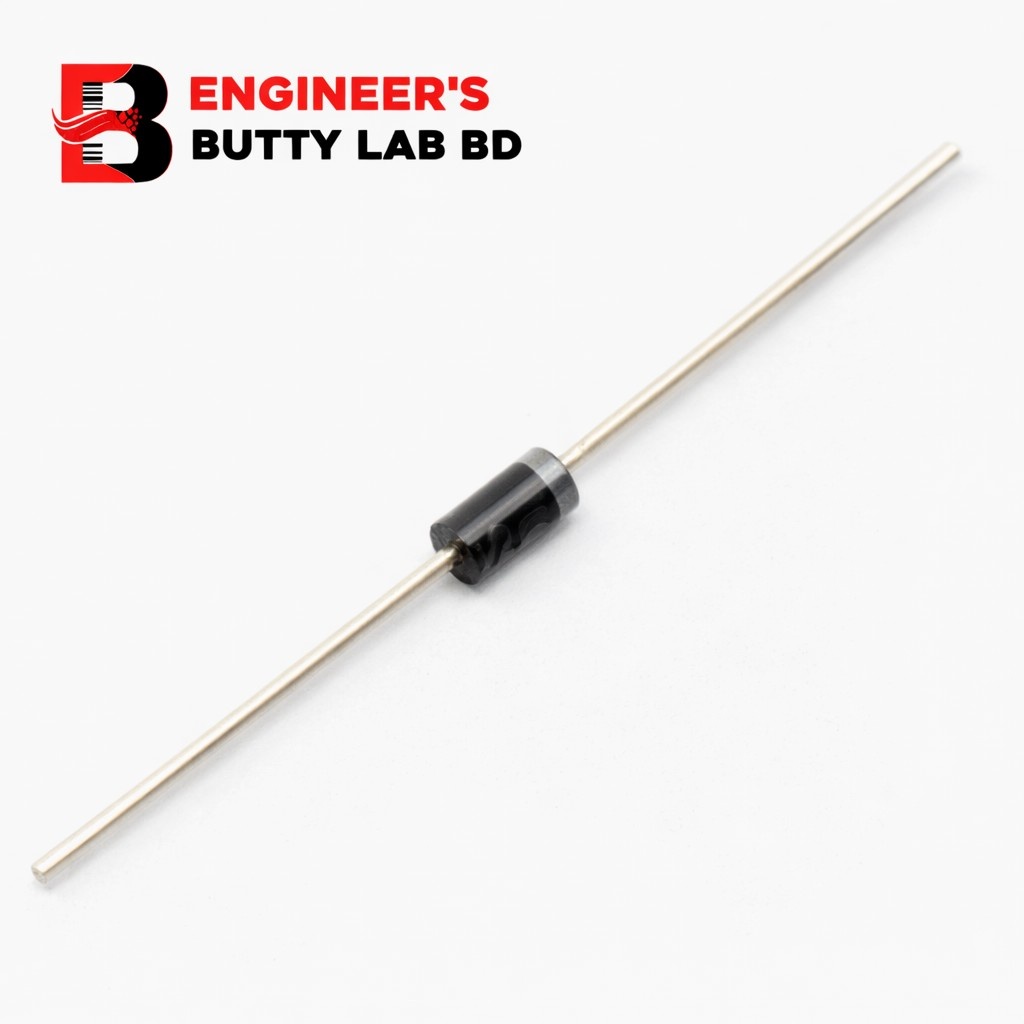

1N4007 Diode
Specifications:
- PN junction rectifier diode.
- One direction flow of Current.
- Used for conversion of AC power to DC.
- 1N 4007 is electrically compatible with other rectifier diodes
- Used instead of any of the diode belonging to 1N400X series
Original price was: 5৳ .3৳ Current price is: 3৳ .
144 in stock
144 in stock
Payment Methods:
Description
🔹 Product Overview
The 1N4007 is a general-purpose rectifier diode widely used in power supply and switching applications. It is designed to convert alternating current (AC) to direct current (DC) and provides high reverse voltage capability of up to 1000V with a forward current rating of 1A.
It is one of the most commonly used rectifier diodes in electronic circuits.
🔹 Key Features
-
Type: General Purpose Rectifier Diode
-
Maximum Reverse Voltage: 1000V
-
Forward Current: 1A
-
Axial Lead Package (DO-41)
-
Low Cost & High Reliability
-
High Surge Current Capability
🔹 Technical Specifications
| Parameter | Value |
|---|---|
| Model | 1N4007 |
| Repetitive Peak Reverse Voltage (VRRM) | 1000V |
| Maximum RMS Voltage | 700V |
| Average Forward Current (IF) | 1A |
| Peak Surge Current (IFSM) | 30A (8.3ms half sine wave) |
| Forward Voltage Drop (VF) | ~0.7V – 1.1V |
| Package Type | DO-41 (Axial) |
| Operating Temperature | -55°C to +150°C |
| Reverse Recovery Time | Standard recovery |
🔹 Identification
-
Black cylindrical body
-
Silver/white band indicates Cathode
-
Printed marking: “1N4007”
🔹 Applications
-
AC to DC rectification
-
Bridge rectifier circuits
-
Power supply units
-
Battery chargers
-
Reverse polarity protection
-
Adapter circuits
-
Household electronic devices
🔹 Advantages
✔ High voltage rating (1000V)
✔ Widely available and affordable
✔ Reliable performance
✔ Suitable for general-purpose power circuits
✔ Easy PCB mounting
🔹 Pin Configuration
-
Anode: Unmarked side
-
Cathode: Band-marked side
🔹 Package Includes
-
1 × 1N4007 Rectifier Diode
