Water Turbidity Sensor

Water Turbidity Sensor

Liquid Clarity & Suspended Particles Detection Sensor

The Water Turbidity Sensor is an electronic sensor designed to measure the cloudiness or turbidity of water by detecting suspended particles such as dirt, silt, algae, or organic matter. It works on an optical sensing principle, making it ideal for water quality monitoring, environmental analysis, and IoT-based smart water systems.

This sensor is widely used with Arduino, ESP8266/ESP32, Raspberry Pi (via ADC), and other microcontroller platforms.

Key Features

• Measures Water Turbidity (Clarity Level)

• Optical Infrared-Based Detection

• Analog Output for Turbidity Level

• Fast Response and Stable Performance

• Waterproof Probe Design

• Low Power Consumption

• Easy Integration with Microcontrollers

Working Principle

The sensor uses an infrared LED and phototransistor:

1. The IR LED emits light through the water sample.

2. Suspended particles scatter the light depending on water clarity.

3. The phototransistor receives the scattered/reflected light.

4. The sensor converts this into an analog voltage proportional to turbidity.

• Clear water → Higher voltage

• Turbid water → Lower voltage

Technical Specifications (Typical)

• Sensor Type: Optical Turbidity Sensor

• Operating Voltage: 5V DC

• Output Type: Analog

• Measurement Range: 0 – 1000 NTU (approx.)

• Response Time: < 500 ms

• Operating Temperature: 0°C to 80°C

• Waterproof Rating: Suitable for immersion

Pin Configuration

• VCC: 5V Power Supply

• GND: Ground

• AO: Analog Output

(Some versions may include additional pins depending on the breakout board.)

Module Components

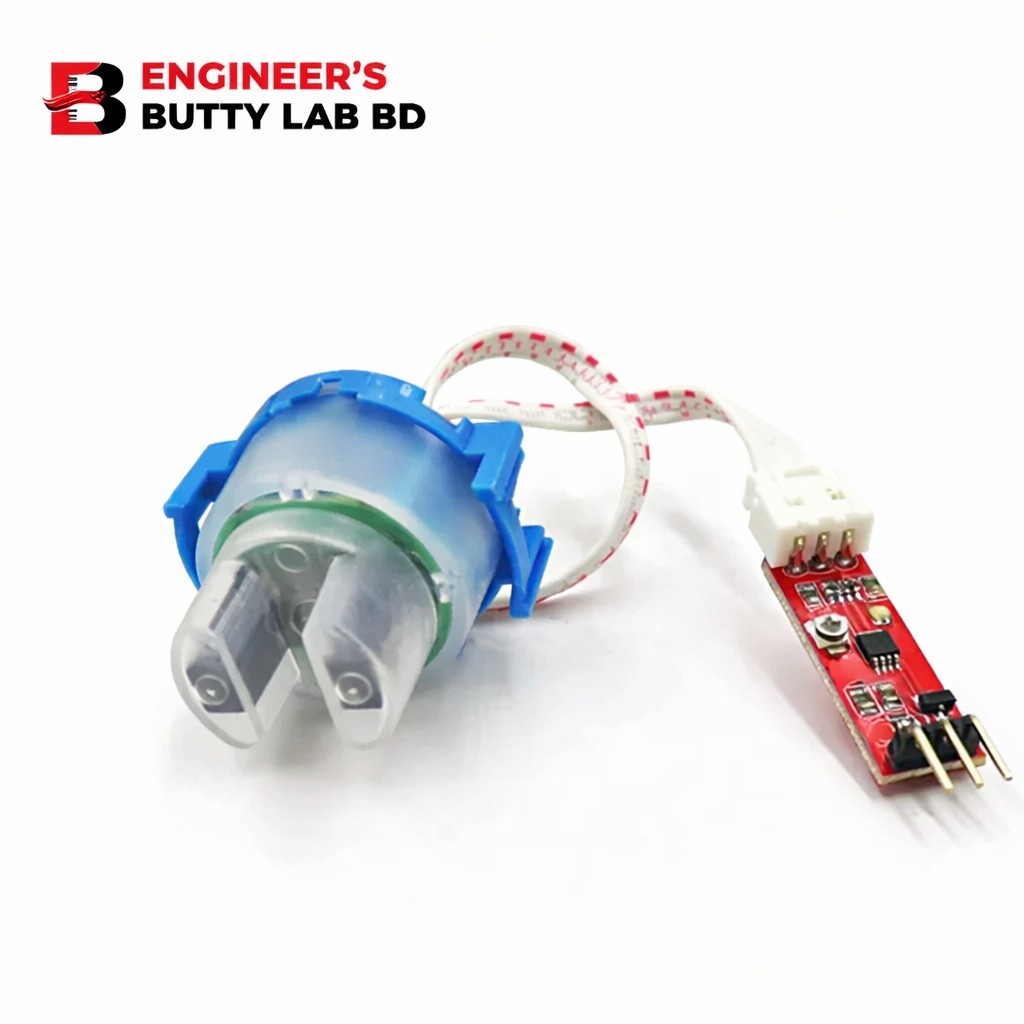

• Turbidity Probe:

  • Waterproof cylindrical sensor

  • Infrared emitter & detector

  • Durable plastic housing

• Signal Conditioning Board:

  • Converts sensor output to stable analog signal

  • 3-pin/4-pin interface

  • Compact red PCB

Applications

• Water quality monitoring systems

• Drinking water analysis

• Aquaculture and fish farming

• River and lake monitoring

• Wastewater treatment plants

• Smart agriculture irrigation systems

• IoT-based environmental monitoring

• Educational and research projects

Advantages

• Simple optical measurement method

• Low-cost and reliable solution

• Easy calibration

• Suitable for long-term water monitoring

• Compatible with popular development boards
