Veroboard Line Type

🔹 Product Overview

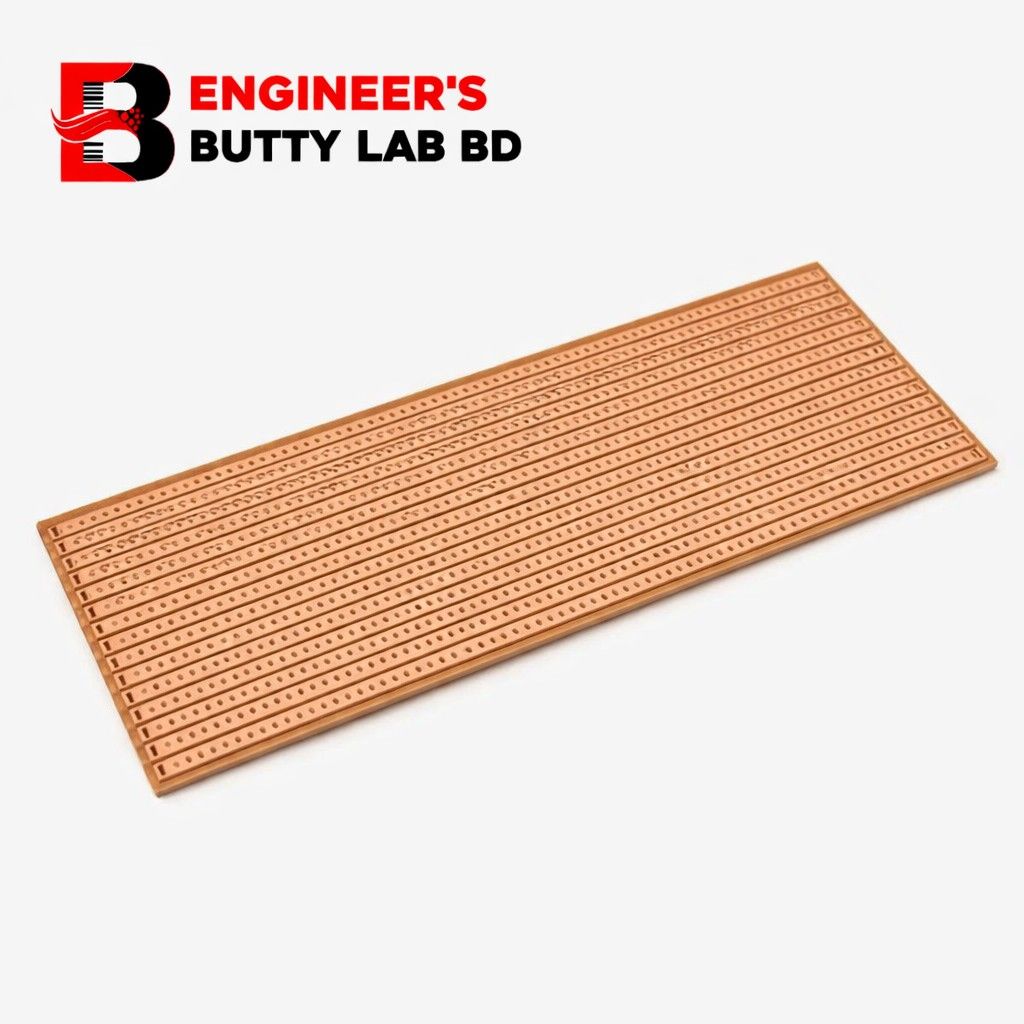

Veroboard Line Type, also known as Stripboard, is a general-purpose prototyping PCB featuring continuous parallel copper strips (lines) on one side of the board. It is used to build permanent soldered circuits after testing on a breadboard. This board is ideal for students, hobbyists, and professional electronics developers.

🔹 Key Features

• Board Type: Line Connected (Copper Strip Type)

• Copper Layout: Continuous parallel copper tracks

• Hole Pitch: 2.54mm (0.1 inch standard spacing)

• Single-Sided PCB

• Pre-Drilled Holes for through-hole components

• Cuttable Design: Can be trimmed to required size

• Durable Base Material

🔹 Technical Specifications

• Material: FR2 (Phenolic) / FR4 (Fiberglass)

• Copper Thickness: Approx. 35µm

• Board Thickness: 1.2mm – 1.6mm

• Hole Diameter: ~1mm

• Track Width: Standard strip width for easy soldering

• Color: Brown board with copper strips

🔹 How It Works

• Each row of holes is connected by a continuous copper strip (line) underneath.

• Components placed in the same row are electrically connected.

• To isolate sections, copper tracks can be cut using a track cutter or drill bit.

• Connections between different strips are made using jumper wires or component leads.

🔹 Applications

• Arduino & Microcontroller circuits

• Power supply projects

• Amplifier circuits

• DIY electronics

• Robotics projects

• Educational laboratory use

• Small industrial prototypes

🔹 Advantages

✔ Faster soldering compared to dot type
✔ Easy circuit modification
✔ Strong mechanical support
✔ Ideal for medium-complexity circuits
✔ Cost-effective prototyping solution

🔹 Difference: Line Type vs Dot Type

🔹 Package Includes

• 1 × Veroboard Line Type PCB (Size varies by product listing)
