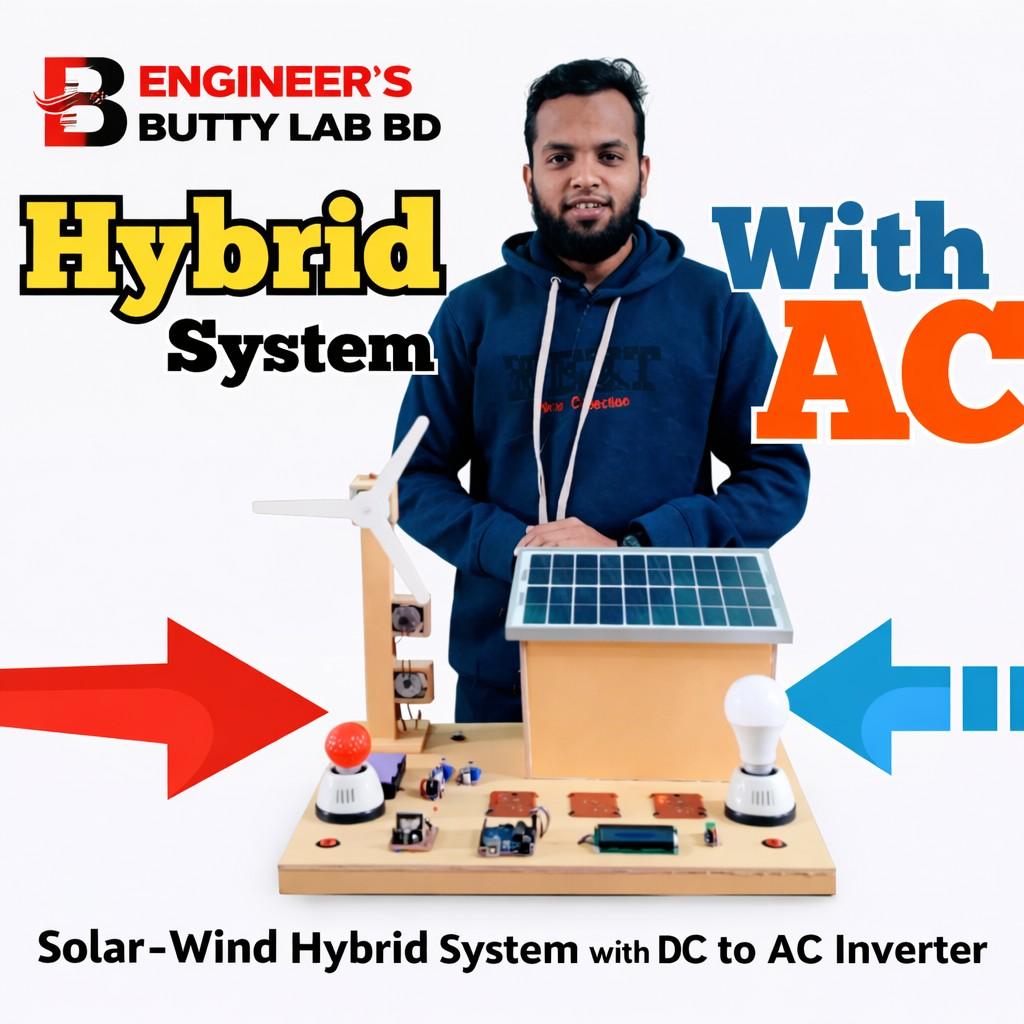

Solar-Wind Hybrid System with DC to AC Inverter

Solar-Wind Hybrid System with DC to AC Inverter

Project Overview

The Solar-Wind Hybrid System with DC to AC Inverter is a renewable energy–based power generation system that combines solar energy and wind energy to produce continuous and reliable electrical power. The system efficiently utilizes multiple renewable sources and converts the generated DC power into usable AC power using an inverter.

This hybrid approach overcomes the limitations of single-source renewable systems and ensures uninterrupted power supply, making it ideal for remote and off-grid applications.

Working Principle

The system works by integrating two renewable energy sources—solar panel and wind turbine—along with power conditioning and conversion circuits.

1. The solar panel converts sunlight into DC electrical energy.

2. The wind turbine generates DC power when wind rotates its blades.

3. Both power sources are connected to a charge controller, which regulates voltage and current.

4. Generated energy is stored in a battery bank.

5. The stored DC power is fed into a DC to AC inverter.

6. The inverter converts DC voltage into standard AC voltage (220V / 110V).

7. AC loads such as lights, fans, and appliances are powered from the inverter output.

8. The system automatically selects or combines sources based on availability.

Main Components

• Solar Panel – Converts sunlight into electrical energy

• Wind Turbine – Generates power from wind energy

• Charge Controller – Prevents battery overcharging and deep discharge

• Rechargeable Battery – Energy storage unit

• DC to AC Inverter – Converts DC power to AC power

• Microcontroller (optional) – System monitoring and automation

• Voltage & Current Sensors – Performance monitoring

• Loads (AC bulbs, fans, etc.) – Power consumption

Key Features

• Dual renewable energy sources

• Continuous power generation

• DC to AC power conversion

• Reduced dependency on grid electricity

• Automatic source management

• Environment-friendly system

• Low operating cost

Advantages

• Higher reliability compared to single-source systems

• Better energy utilization

• Suitable for off-grid and rural areas

• Reduced carbon emissions

• Long-term cost savings

• Scalable system design

Limitations

• Higher initial installation cost

• Requires proper wind and sunlight availability

• System efficiency depends on weather conditions

• Regular maintenance needed for turbine

Applications

• Rural electrification

• Remote area power supply

• Smart homes

• Telecom towers

• Educational and research projects

• Emergency backup power systems

Future Scope

• IoT-based real-time monitoring

• MPPT charge controller integration

• Smart grid compatibility

• Battery management system (BMS)

• AI-based power optimization

• Hybrid renewable microgrids

Conclusion

The Solar-Wind Hybrid System with DC to AC Inverter is an efficient and sustainable solution for modern energy needs. By combining solar and wind energy, the system ensures consistent power generation while reducing reliance on fossil fuels. This project demonstrates the practical application of renewable energy integration, power electronics, and smart energy management, making it highly suitable for academic, industrial, and real-world use.
