RFID, Keypad and GSM Based Security System

📌 Project Title

RFID, Keypad and GSM Based Security System

🔍 Project Overview

The RFID, Keypad and GSM Based Security System is an advanced electronic security solution designed to provide multi-layer authentication for restricted areas such as homes, offices, laboratories, banks, and server rooms.
This system integrates RFID card verification, password authentication via keypad, and real-time GSM communication to ensure high security, reliability, and remote monitoring.

Unlike single-authentication systems, this project enhances safety by combining physical access (RFID), knowledge-based access (password), and mobile communication (SMS alerts), making unauthorized access extremely difficult.

🎯 Objectives

• To design a highly secure access control system

• To prevent unauthorized entry using multiple authentication methods

• To provide instant SMS alerts during access attempts

• To ensure remote monitoring using GSM technology

• To create a low-cost, scalable security solution

⚙️ System Working Principle

1. RFID Authentication

   • A registered RFID card is scanned using an RFID reader.

   • If the card ID matches stored data, the system proceeds to the next step.

2. Keypad Password Verification

   • The user enters a predefined password using a keypad.

   • Correct password allows access; incorrect attempts trigger alerts.

3. GSM Communication

   • A GSM module sends SMS notifications to the authorized user.

   • Alerts include:

     • Successful access

     • Wrong password attempt

     • Unauthorized RFID detection

4. Door Lock Control

   • Upon successful authentication, a relay module activates an electronic lock/solenoid to unlock the door.

   • After a preset delay, the door automatically locks again.

5. LCD Display Feedback

   • Displays system status such as:

     • “Scan RFID Card”

     • “Enter Password”

     • “Access Granted”

     • “Access Denied”

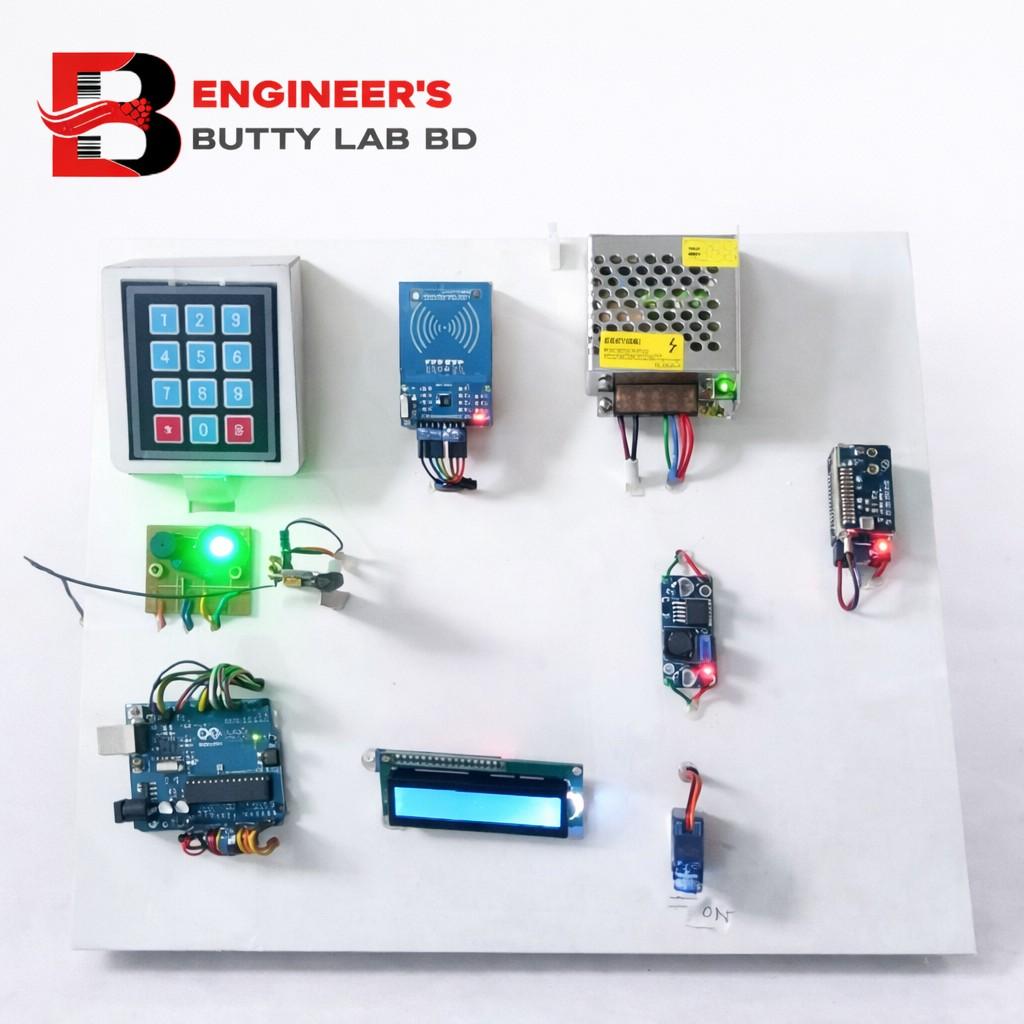

🧩 Major Components Used

• Microcontroller (Arduino Uno / Mega) – Central control unit

• RFID Reader (RC522) – Reads RFID cards/tags

• RFID Cards/Tags – User identification

• 4×4 Keypad – Password input

• GSM Module (SIM800/SIM900) – SMS alert system

• Relay Module – Controls door lock mechanism

• Solenoid Lock / Electronic Door Lock – Physical locking system

• 16×2 LCD Display – User interface

• Power Supply Unit – Provides regulated power

• Buzzer & LEDs – Audio-visual alerts

🛡️ Key Features

• ✅ Dual Authentication (RFID + Password)

• 📩 Real-time SMS Alerts

• 🔒 Automatic Door Locking

• 🚨 Unauthorized Access Detection

• 🖥️ LCD Status Display

• ⚡ Low Power Consumption

• 🔄 Expandable for IoT & App Control

🏠 Applications

• Smart homes and apartments

• Office and corporate security

• Bank lockers and vaults

• Laboratories and research centers

• Educational institutions

• Server rooms and data centers

🚀 Advantages

• Higher security than single-method systems

• Easy to use and user-friendly

• Remote monitoring via GSM

• Cost-effective and scalable

• Can be upgraded to IoT-based cloud systems

🔮 Future Enhancements

• Integration with mobile app or web dashboard

• Fingerprint or facial recognition support

• Camera-based intrusion detection

• Cloud logging of access history

• Voice alerts and push notifications

🧠 Conclusion

The RFID, Keypad and GSM Based Security System is a powerful and reliable access control solution that ensures enhanced security through multi-factor authentication. By combining RFID technology, password protection, and GSM-based notifications, this system significantly reduces the risk of unauthorized access and provides peace of mind to users. It is an ideal project for engineering students, IoT enthusiasts, and smart security applications.
