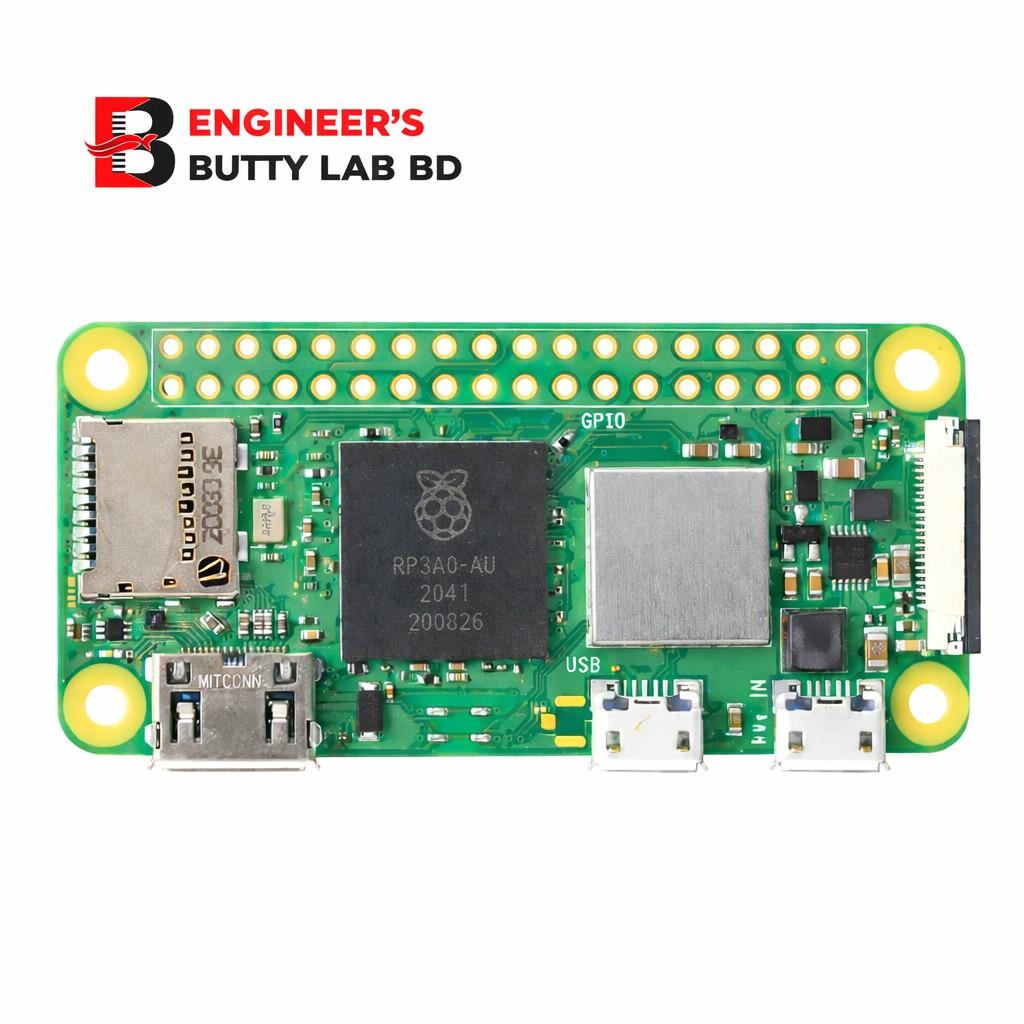

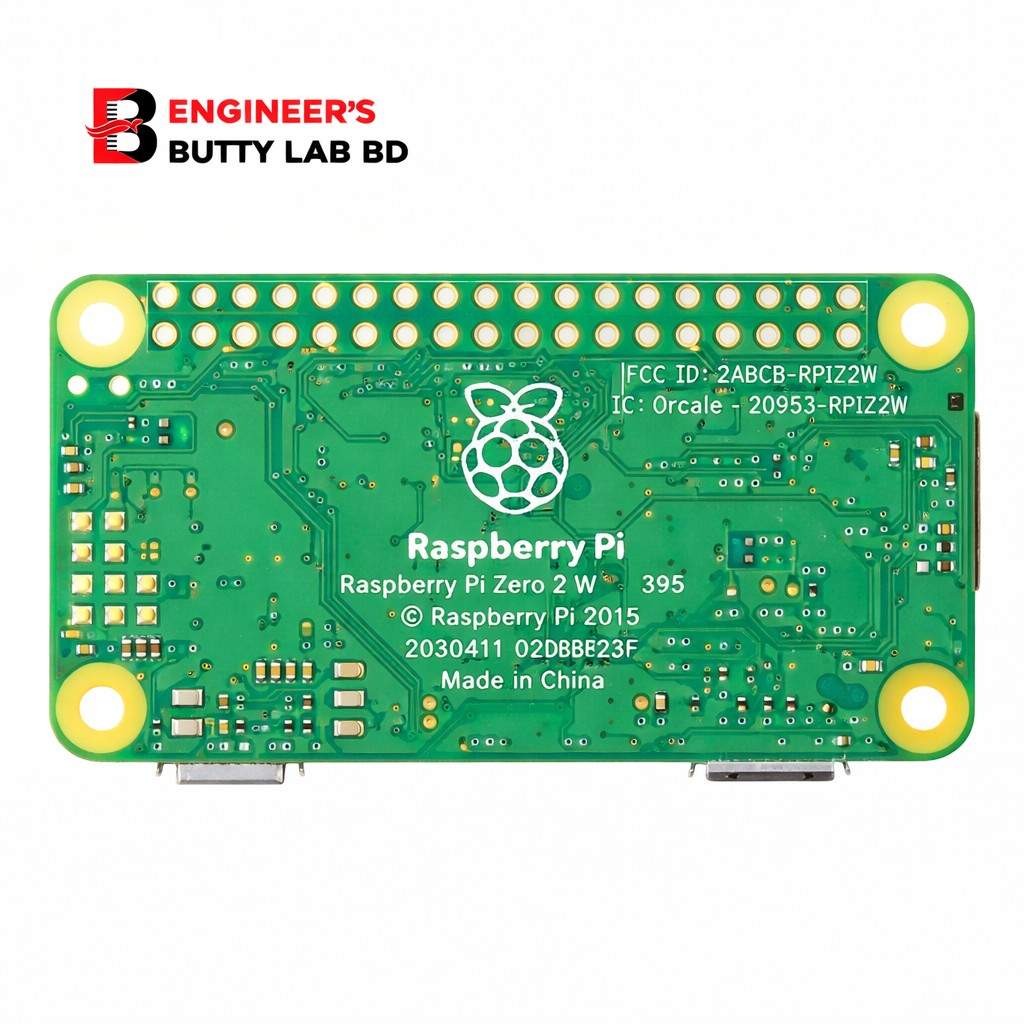

Raspberry Pi Zero 2 W

Raspberry Pi Zero 2 W – Product Description

The Raspberry Pi Zero 2 W is a powerful yet ultra-compact single-board computer designed for IoT, embedded systems, robotics, and DIY electronics projects. Powered by a quad-core 64-bit ARM Cortex-A53 processor, it delivers up to 5× higher performance than the original Raspberry Pi Zero while maintaining low power consumption.

This board features built-in 2.4 GHz Wi-Fi and Bluetooth 4.2 (BLE), enabling seamless wireless connectivity for smart devices and automation systems. With 512 MB LPDDR2 RAM, Mini HDMI output supporting Full HD 1080p, and a 40-pin GPIO header compatible with Raspberry Pi HATs, the Raspberry Pi Zero 2 W offers excellent flexibility for makers and developers.

Its small form factor, Micro-USB OTG, and MicroSD storage make it ideal for space-constrained applications, battery-powered projects, and portable computing solutions. Fully compatible with Raspberry Pi OS and Linux distributions, the Raspberry Pi Zero 2 W is a cost-effective choice for both beginners and professionals looking to build reliable, connected hardware solutions.

Keywords: Raspberry Pi Zero 2 W, mini single board computer, IoT development board, Raspberry Pi for robotics, WiFi Bluetooth SBC, embedded Linux board.

Specifications

• Processor: Broadcom BCM2710A1, quad-core 64-bit ARM Cortex-A53 @ 1.0 GHz

• RAM: 512 MB LPDDR2 SDRAM

• Wireless Connectivity:

  • 2.4 GHz IEEE 802.11 b/g/n Wi-Fi

  • Bluetooth 4.2, Bluetooth Low Energy (BLE)

• Video & Display:

  • Mini HDMI (up to 1080p @ 60 fps)

• Camera & Display Interfaces:

  • CSI-2 camera connector (via soldered header)

  • DSI display support (via soldered header)

• USB:

  • 1 × Micro-USB 2.0 (OTG)

• GPIO:

  • 40-pin GPIO header (unpopulated, compatible with HATs)

• Storage:

  • MicroSD card slot

• Power Supply:

  • 5 V via Micro-USB

• Operating System Support:

  • Raspberry Pi OS, Linux-based distributions

• Form Factor:

  • Dimensions: approx. 65 mm × 30 mm

• Power Consumption:

  • Low-power design, suitable for battery-powered projects
