PIR Motion Sensor Based Motion Detection System

PIR Motion Sensor Based Motion Detection System

The PIR Motion Sensor Based Motion Detection System is an intelligent electronic security and automation project designed to detect human movement and trigger predefined actions automatically. This system uses a Passive Infrared (PIR) sensor to sense changes in infrared radiation emitted by moving objects, especially humans, making it ideal for security, surveillance, and smart automation applications.

System Overview

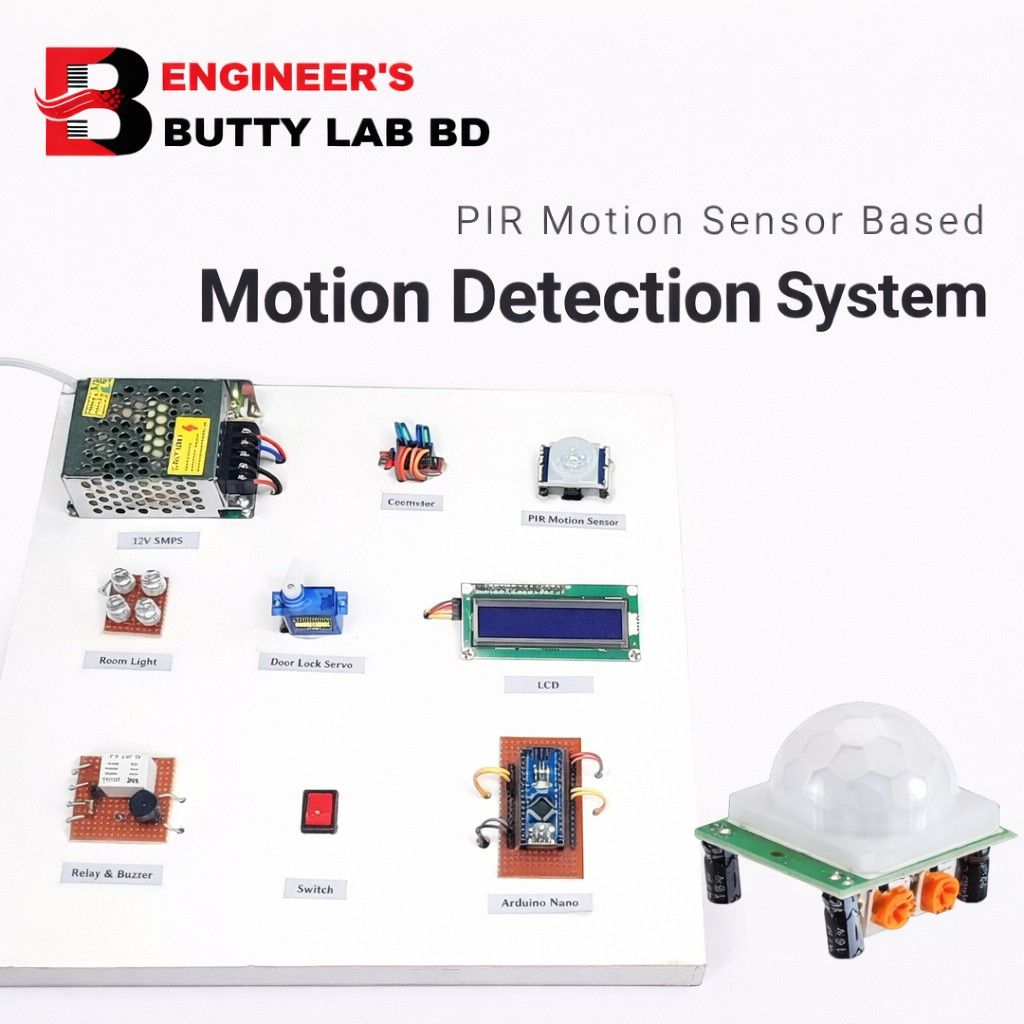

The project is neatly assembled on a clean white baseboard, ensuring excellent visibility of all components. Each module is clearly labeled and arranged for easy understanding. The Engineer’s Butty Lab BD logo is positioned at the top-left corner, scaled smaller than the main components to maintain a professional and uncluttered appearance. The white background enhances clarity and gives the setup a laboratory-grade, presentation-ready look.

Key Components

• PIR Motion Sensor – Detects motion by sensing infrared radiation changes.

• Arduino Nano – Acts as the main controller, processing sensor data and controlling outputs.

• 12V SMPS (Switch Mode Power Supply) – Provides stable power to the system.

• Relay Module with Buzzer – Activates alarms or external devices when motion is detected.

• Room Light LEDs – Demonstrates automatic lighting control upon motion detection.

• Door Lock Servo Motor – Simulates automated door locking/unlocking functionality.

• LCD Display – Displays real-time system status and motion detection messages.

• Control Switch – Allows manual system operation or reset.

Working Principle

When a person enters the detection range, the PIR sensor detects motion and sends a signal to the Arduino Nano. The microcontroller then activates the relay and buzzer, turns on lights, controls the servo-based door lock, and updates the LCD display with motion status information. Once motion stops, the system can automatically reset after a predefined delay.

Applications

• Home and office security systems

• Smart lighting automation

• Automatic door locking systems

• Industrial safety monitoring

• Educational and training demonstrations

Project Highlights

• Reliable and low-power motion detection

• Modular and easy-to-understand design

• Real-time visual and audible alerts

• Professional layout suitable for academic and commercial display

This PIR Motion Sensor Based Motion Detection System demonstrates a practical and cost-effective approach to modern security and automation, making it an excellent choice for students, researchers, and IoT enthusiasts.
