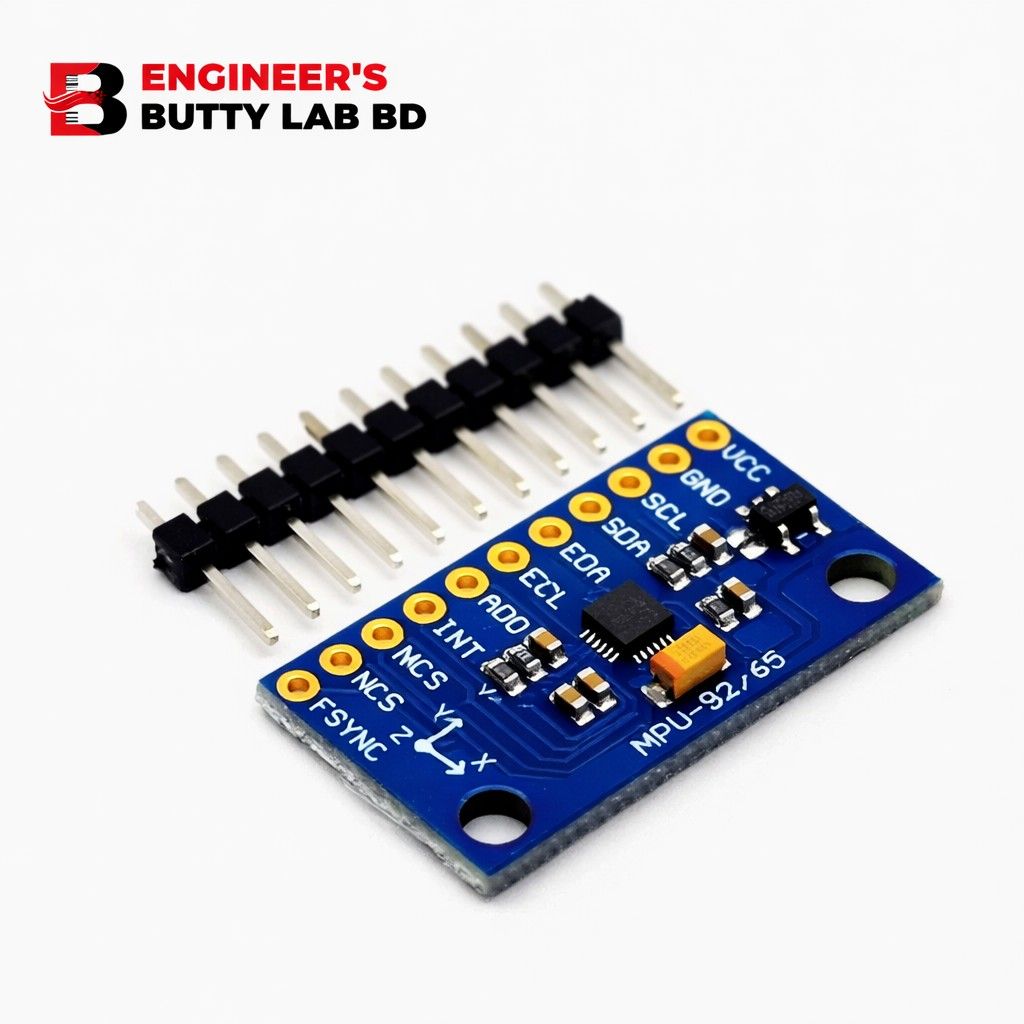

MPU 9250 9 Axis Gyro Acceleration Magnetometer Sensor

MPU-9250 9-Axis Motion Sensor Module

Gyroscope + Accelerometer + Magnetometer (IMU Sensor)

The MPU-9250 is a high-performance 9-axis Inertial Measurement Unit (IMU) that integrates a 3-axis gyroscope, 3-axis accelerometer, and 3-axis magnetometer (compass) into a single compact chip. It is designed for precise motion tracking, orientation detection, and navigation applications.

This sensor is widely used with Arduino, ESP32/ESP8266, Raspberry Pi, drones, robotics, and IoT systems due to its accuracy, low power consumption, and reliable digital communication.

Key Features

• 9-Axis Motion Tracking (3-axis gyro + 3-axis accel + 3-axis mag)

• High Accuracy & Stability

• Low Power Consumption

• I²C & SPI Communication Interfaces

• Onboard Digital Motion Processing (DMP) Support

• Compact & Lightweight Module

• Ideal for Real-Time Orientation & Navigation

Sensor Components

• 3-Axis Accelerometer: Measures linear acceleration (X, Y, Z)

• 3-Axis Gyroscope: Measures angular velocity (rotation)

• 3-Axis Magnetometer: Measures Earth’s magnetic field for compass heading

Together, these sensors provide roll, pitch, yaw, tilt, and orientation data.

Working Principle

• The accelerometer detects movement and tilt.

• The gyroscope detects rotational motion.

• The magnetometer provides absolute heading (compass direction).

By fusing data from all three sensors using software algorithms (sensor fusion), the MPU-9250 delivers precise motion and orientation information.

Technical Specifications (Typical)

• Sensor IC: MPU-9250

• Axes: 9 (3 accel + 3 gyro + 3 mag)

• Operating Voltage:

  • Core: 3.3V

  • Module Input: 3.3V – 5V (with onboard regulator)

• Communication Interface: I²C / SPI

• Accelerometer Range: ±2g, ±4g, ±8g, ±16g

• Gyroscope Range: ±250, ±500, ±1000, ±2000 °/s

• Magnetometer Range: ±4800 µT

• Sampling Rate: Up to 1 kHz

• Operating Temperature: −40°C to +85°C

Pin Configuration (Typical Module)

• VCC: Power Supply

• GND: Ground

• SCL: I²C Clock

• SDA: I²C Data

• INT: Interrupt Output

• ADO: I²C Address Select

• NCS: SPI Chip Select

• FSYNC: Frame Sync

Applications

• Drones and UAV flight control

• Robotics navigation and balancing

• Motion tracking systems

• Inertial navigation systems (INS)

• Virtual reality (VR) controllers

• Self-balancing robots

• Smart wearables

• IoT motion sensing projects

• Educational and research projects

Advantages

• Combines three sensors in one chip

• High precision motion detection

• Compact size for embedded systems

• Widely supported by open-source libraries

• Reliable performance in dynamic environments

Limitations

• Requires sensor calibration

• Magnetometer sensitive to nearby metal

• Advanced processing needed for best accuracy
