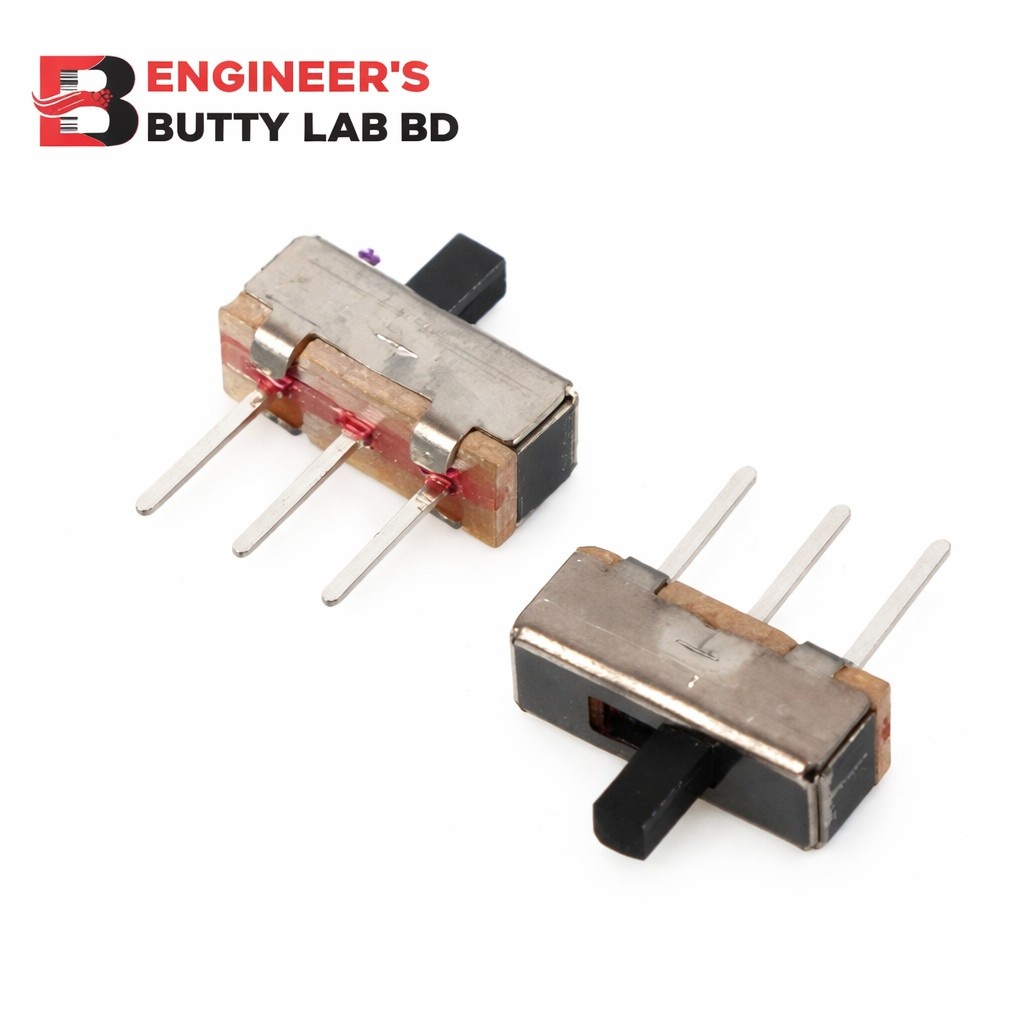

🔘 Mini Slide Switch (SPDT) – 3 Pin

📌 Product Overview

The Mini Slide Switch (SPDT) is a compact and reliable manual switch used for selecting between two circuits or turning a device ON/OFF. It features a small sliding actuator and three terminals, making it ideal for low-voltage electronic applications and DIY projects.

This switch is widely used in electronics, toys, small devices, Arduino projects, and control panels.

⚙️ Key Features

• ✅ SPDT (Single Pole Double Throw) configuration

• ✅ 3-pin terminal design

• ✅ Compact mini size

• ✅ Smooth sliding operation

• ✅ Durable metal body

• ✅ Easy PCB mounting

• ✅ Low power consumption

• ✅ Long mechanical life

🔧 Technical Specifications

🔌 Working Principle

The SPDT switch connects the common pin to one of the two output pins:

• Position 1 → Connects Common to Pin A

• Position 2 → Connects Common to Pin B

It allows switching between two circuits.

🎯 Applications

• 🔋 Battery-powered projects

• 🤖 Arduino & microcontroller circuits

• 🎮 Electronic toys

• 🔌 Mode selection circuits

• 💡 LED control

• 🧪 DIY electronics

• 🛠 Small appliance control

💡 Advantages

• Compact and space-saving

• Easy to install and solder

• Reliable switching performance

• Low cost and durable

• Suitable for low-voltage applications

📦 Package Includes

• 1 × Mini Slide Switch (SPDT)

⚠️ Important Notes

• Not suitable for high voltage AC mains directly.

• Always check voltage/current rating before use.

• Ensure proper soldering to avoid loose connection.
