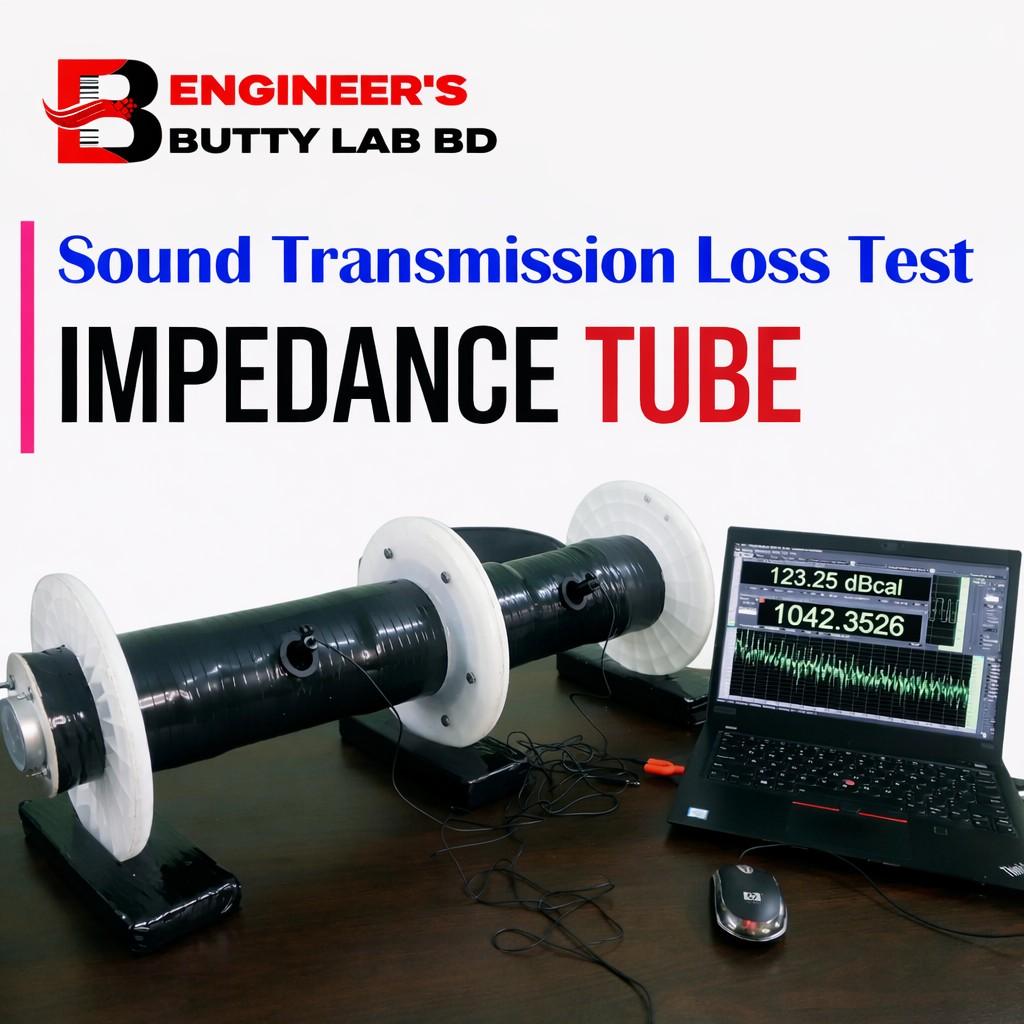

Impedance Tube – Sound Transmission Loss Measurement System

Project Overview

The Impedance Tube for Sound Transmission Loss (STL) Measurement is an experimental acoustic testing system used to evaluate the sound insulation and acoustic performance of materials. This setup is widely used in acoustics engineering, material science, automotive, and building industries to determine how effectively a material reduces or blocks sound transmission. The system follows standardized acoustic testing principles using controlled sound waves, microphones, and signal analysis software.

Objective of the System

The main objectives of this project are:

• To measure Sound Transmission Loss (STL) of materials

• To analyze acoustic absorption and reflection properties

• To study noise control and sound insulation performance

• To provide a low-cost laboratory-scale acoustic testing solution

• To support research and academic experimentation in acoustics

Working Principle

The impedance tube operates on the principle of plane wave sound propagation within a rigid cylindrical tube.

1. A sound source (loudspeaker) generates a known acoustic signal at one end of the tube.

2. The sound wave travels through the tube and interacts with the test material placed inside.

3. Microphones mounted at precise positions detect incident, reflected, and transmitted sound waves.

4. The captured signals are sent to a data acquisition system or computer.

5. Using signal processing software, parameters such as:

   • Sound Pressure Level (SPL)

   • Frequency response

   • Transmission loss (in dB)
     are calculated.

6. The difference between incident and transmitted sound energy determines the Sound Transmission Loss of the material.

Main Components Used

• Impedance Tube (Rigid Cylindrical Tube)

• Loudspeaker / Sound Source

• Precision Microphones

• Microphone Mounting Ports

• Test Sample Holder

• Data Acquisition System / Audio Interface

• Computer with Acoustic Analysis Software

• Signal Generator & Amplifier

Key Features

• Accurate sound transmission loss measurement

• Frequency-domain and time-domain analysis

• Supports a wide frequency range

• Compact and laboratory-friendly design

• Repeatable and reliable results

• Compatible with standard acoustic software

• Cost-effective alternative to commercial systems

Advantages

• Precise evaluation of acoustic materials

• Essential tool for noise control research

• Simple construction and easy operation

• High measurement accuracy

• Supports educational and industrial testing

• Scalable for advanced acoustic experiments

Applications

• Acoustic material testing laboratories

• Building acoustics and construction materials

• Automotive noise and vibration analysis

• Aerospace acoustic research

• Product sound insulation testing

• Academic research and teaching laboratories

Standards & Compliance

The impedance tube method is commonly aligned with international standards such as:

• ISO 10534

• ASTM E1050
  These standards define the methodology for measuring acoustic impedance, absorption coefficient, and transmission loss.

Future Enhancements

• Automated frequency sweep generation

• Multi-channel data acquisition

• Integration with IoT-based remote monitoring

• Higher frequency range support

• Real-time graphical visualization

• AI-based acoustic material classification

Conclusion

The Impedance Tube Sound Transmission Loss Measurement System is a vital experimental setup for evaluating the acoustic performance of materials. By enabling accurate and repeatable measurement of sound transmission loss, this system plays a crucial role in noise control engineering, material development, and acoustic research. Its simplicity, precision, and adaptability make it an excellent choice for both academic and industrial applications.
