The Hybrid Solar-Thermal Steam Power Generation System is an advanced renewable energy project that combines solar photovoltaic (PV) technology, solar thermal energy, and automatic solar tracking to generate electrical power efficiently. The system demonstrates how sunlight can be utilized in two parallel ways—direct electricity generation and steam-based power generation—to maximize overall energy output.

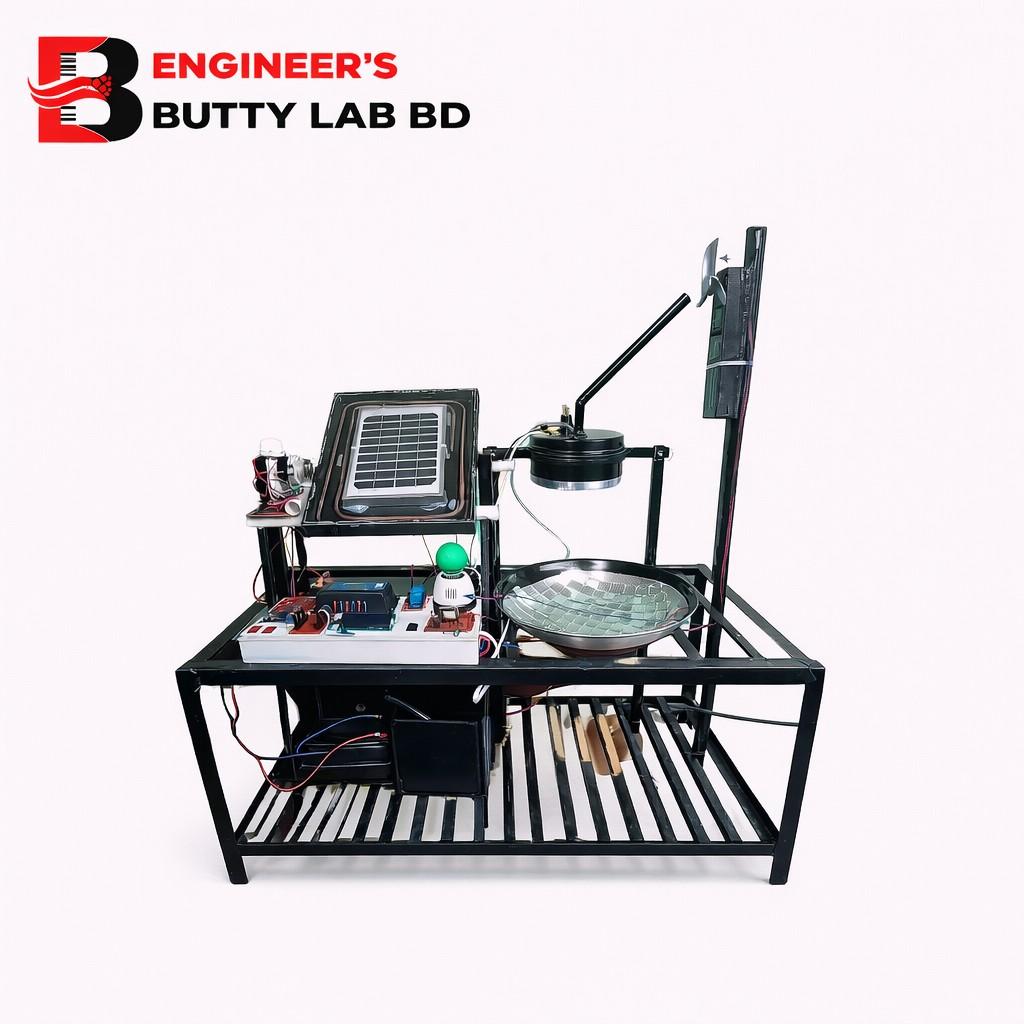

The setup is presented on a clean white background, ensuring excellent visibility of all components and a professional laboratory-grade appearance. A compact ENGINEER’S BUTTY LAB BD logo is positioned at the top-left corner, scaled smaller than the system components to maintain branding without distraction.

System Overview

This hybrid system captures solar energy using a parabolic reflector that focuses sunlight onto a heat-absorbing copper pipe, converting water into high-pressure steam. The steam drives a mini steam turbine connected to a generator, producing electrical energy. Simultaneously, a solar panel with automatic sun-tracking generates electrical power to support control electronics, battery charging, and auxiliary loads.

An ESP-32 microcontroller manages system automation, tracking, safety, and monitoring.

Main Components and Their Functions

• Solar Panel – Converts sunlight into electrical energy

• LDR Sensors – Detect sunlight direction for automatic tracking

• Servo Motor – Adjusts solar panel angle for maximum exposure

• Copper Pipe & Heat-Absorbing Glass – Transfers thermal energy efficiently

• Parabolic Reflector – Concentrates sunlight onto the boiler

• Steam Boiler – Converts water into high-pressure steam

• Safety Valve – Prevents excess pressure buildup

• Steam Turbine – Converts steam energy into mechanical motion

• Generator – Produces electrical energy from turbine rotation

• Temperature Sensor – Monitors boiler temperature

• Water Pump & Water Source – Circulates water through the system

• ESP-32 Controller – Controls tracking, monitoring, and safety logic

• Relay, Charge Controller & Inverter – Power management and switching

• Battery & LCD Display – Energy storage and real-time system display

All components are securely mounted on a rigid metal frame, ensuring mechanical stability and safe operation.

Working Principle

1. Solar Tracking
   LDR sensors detect the strongest sunlight direction. Servo motors rotate the solar panel and reflector to maintain optimal alignment throughout the day.

2. Thermal Energy Generation
   The parabolic reflector concentrates sunlight onto the copper pipe and boiler, heating water to produce steam.

3. Steam Power Conversion
   Pressurized steam flows through the steam outlet tube to the turbine, rotating it and driving the generator.

4. Electrical Power Management
   Generated power is regulated using a charge controller, stored in a battery, and supplied to loads via an inverter.

5. Monitoring & Safety
   Temperature sensors, water detectors, and safety valves ensure controlled and safe operation, while system data is displayed on the LCD.

Applications

• Renewable energy research and development

• Hybrid solar power plants (concept demonstration)

• Engineering final-year and postgraduate projects

• Educational renewable energy laboratories

• Smart energy and sustainability exhibitions

Key Features

• Hybrid solar PV + solar thermal power generation

• Automatic solar tracking system

• Steam-based electricity generation

• Real-time monitoring and safety protection

• Efficient energy utilization

• Clean, eco-friendly, and sustainable design

Advantages

• Maximizes solar energy utilization

• Reduces dependency on fossil fuels

• Demonstrates real-world power plant principles

• Scalable for larger renewable systems

• Ideal for academic and industrial demonstration

Project Highlights

This project showcases an advanced integration of renewable energy engineering, thermal power systems, embedded control, and automation. It serves as an excellent model for understanding how hybrid solar technologies can significantly improve power generation efficiency in future sustainable energy systems.
