Overview

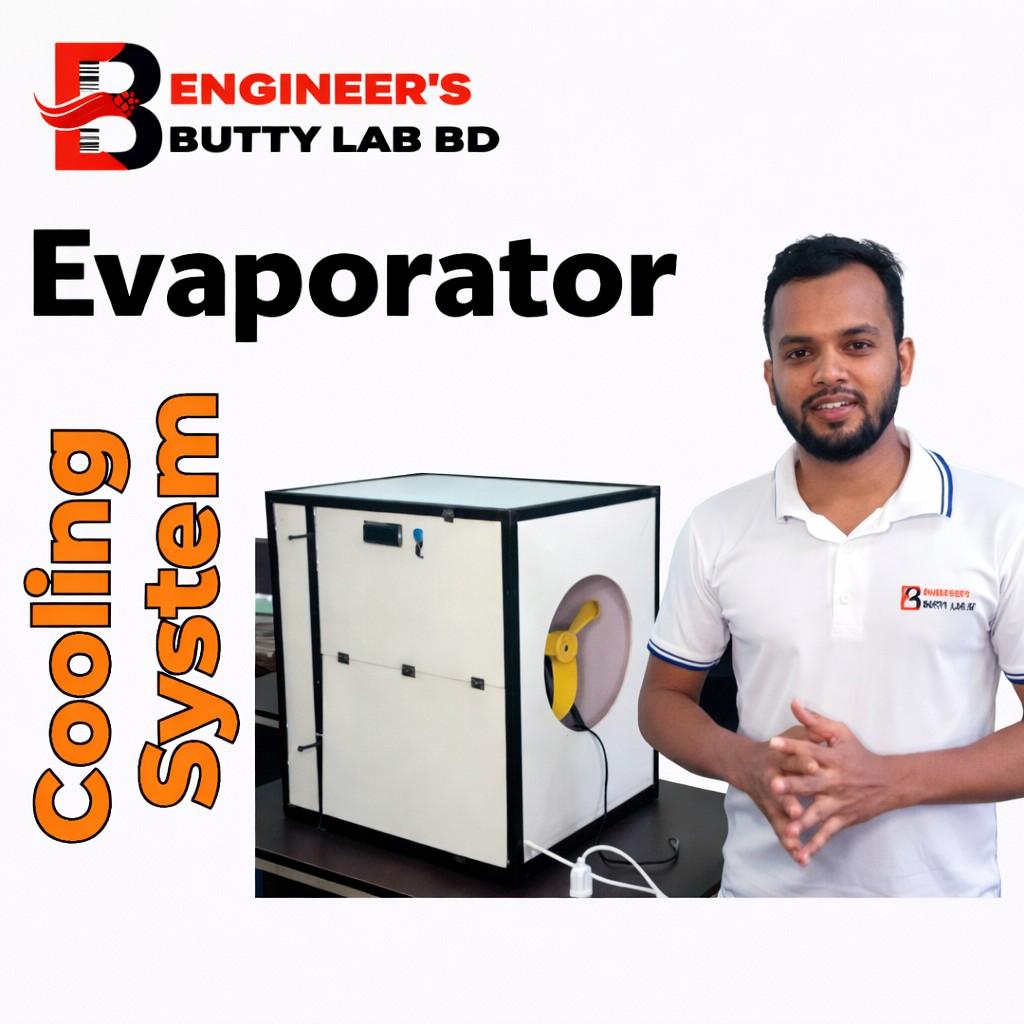

The Evaporative Cooling System is an energy-efficient and eco-friendly cooling solution that reduces air temperature by utilizing the natural process of water evaporation. This system is designed as a prototype to demonstrate how hot air can be cooled without using conventional refrigerants, making it suitable for low-cost and sustainable cooling applications.

Working Principle

The system works on the principle of evaporative cooling, where water absorbs heat from the surrounding air during evaporation. When warm air passes through a wet cooling medium (cooling pad), water molecules evaporate and absorb latent heat from the air, resulting in a significant drop in air temperature. The cooled air is then circulated into the surrounding space using a fan.

System Components

1. Cooling Pad / Evaporative Medium – Absorbs water and allows air to pass through it.

2. Water Tank – Stores water for continuous circulation.

3. Water Pump – Pumps water from the tank to keep the cooling pad wet.

4. Exhaust / Axial Fan – Draws warm air through the wet pad and delivers cool air.

5. Control Unit (optional) – May include switches, temperature sensors, or a microcontroller for automation.

6. Power Supply – Provides electrical power to the fan and pump.

7. Cabinet / Enclosure – Houses all components safely and neatly.

Operation Process

1. The water pump circulates water from the tank to the cooling pad.

2. The fan pulls warm ambient air through the wet cooling pad.

3. Heat from the air is absorbed during water evaporation.

4. Cooler and humidified air exits the system.

5. Continuous water circulation maintains cooling efficiency.

Key Features

• Low power consumption

• No harmful refrigerants

• Simple construction and maintenance

• Cost-effective cooling solution

• Environment-friendly operation

• Can be automated with sensors and controllers

Advantages

• Energy efficient compared to air conditioners

• Suitable for dry and hot climates

• Low installation and running cost

• Eco-friendly and sustainable

• Improves air quality by adding moisture

Limitations

• Less effective in high-humidity environments

• Requires regular water supply

• Cooling depends on ambient temperature and humidity

Applications

• Residential cooling (homes, rooms)

• Industrial workshops

• Agricultural facilities

• Warehouses

• Educational demonstrations and research

• Low-cost cooling in rural areas

Conclusion

The Evaporative Cooling System demonstrates an effective alternative to traditional air-conditioning systems by using natural evaporation to reduce temperature. Its simplicity, affordability, and environmental benefits make it an excellent solution for sustainable cooling, especially in energy-conscious and resource-limited environments.
