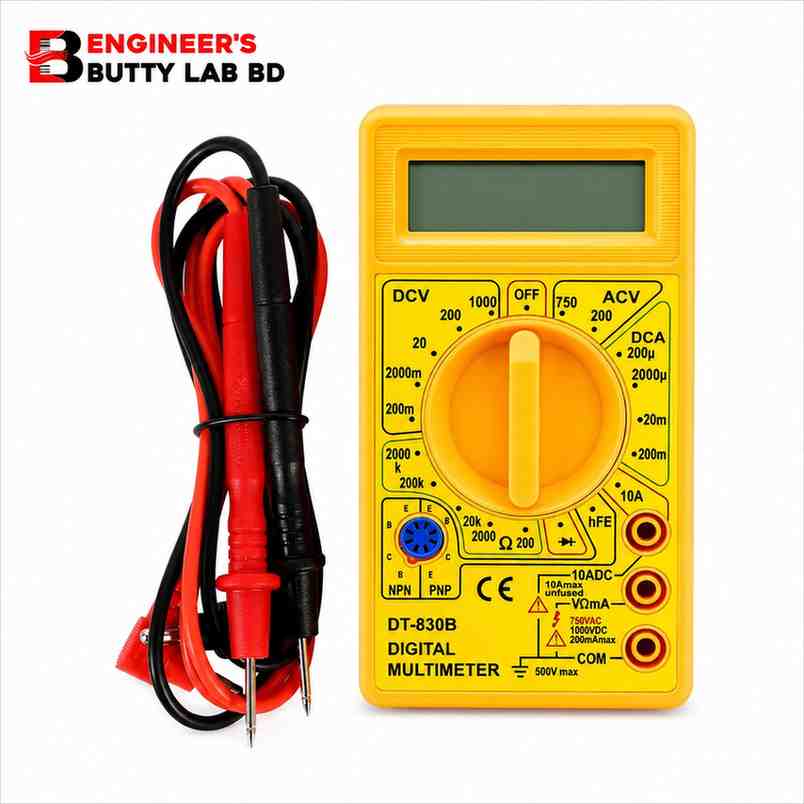

DT-830B Digital Multimeter
DT-830B Digital Multimeter – Specifications
| Parameter | Specification |
|---|---|
| Model | DT-830B |
| Product Type | Digital Multimeter |
| Display | 3½ Digit LCD Display |
| Maximum Display Count | 1999 |
| DC Voltage Range | 200mV, 2000mV, 20V, 200V, 1000V |
| AC Voltage Range | 200V, 750V |
| DC Current Range | 200µA, 2000µA, 20mA, 200mA, 10A |
| Resistance Range | 200Ω, 2kΩ, 20kΩ, 200kΩ, 2MΩ |
| Diode Test | Yes |
| Transistor Test (hFE) | Yes (NPN & PNP) |
| Continuity Test | Yes (with buzzer on some versions) |
| Polarity Indication | Automatic |
| Overload Protection | Yes |
| Sampling Rate | 2–3 Times per Second |
| Power Supply | 9V Battery (6F22) |
| Operating Temperature | 0°C to 40°C |
| Dimensions | Approx. 126 × 70 × 28 mm |
| Weight | Approx. 120–150 g (with battery) |
| Color | Yellow |
Original price was: 255৳ .240৳ Current price is: 240৳ .
17
People watching this product now!
Payment Methods:
Description
Measurement Specifications
DC Voltage
| Range | Resolution |
|---|---|
| 200mV | 0.1mV |
| 2000mV | 1mV |
| 20V | 10mV |
| 200V | 100mV |
| 1000V | 1V |
AC Voltage
| Range | Resolution |
|---|---|
| 200V | 100mV |
| 750V | 1V |
DC Current
| Range | Resolution |
|---|---|
| 200µA | 0.1µA |
| 2000µA | 1µA |
| 20mA | 10µA |
| 200mA | 100µA |
| 10A | 10mA |
Resistance
| Range | Resolution |
|---|---|
| 200Ω | 0.1Ω |
| 2kΩ | 1Ω |
| 20kΩ | 10Ω |
| 200kΩ | 100Ω |
| 2MΩ | 1kΩ |
