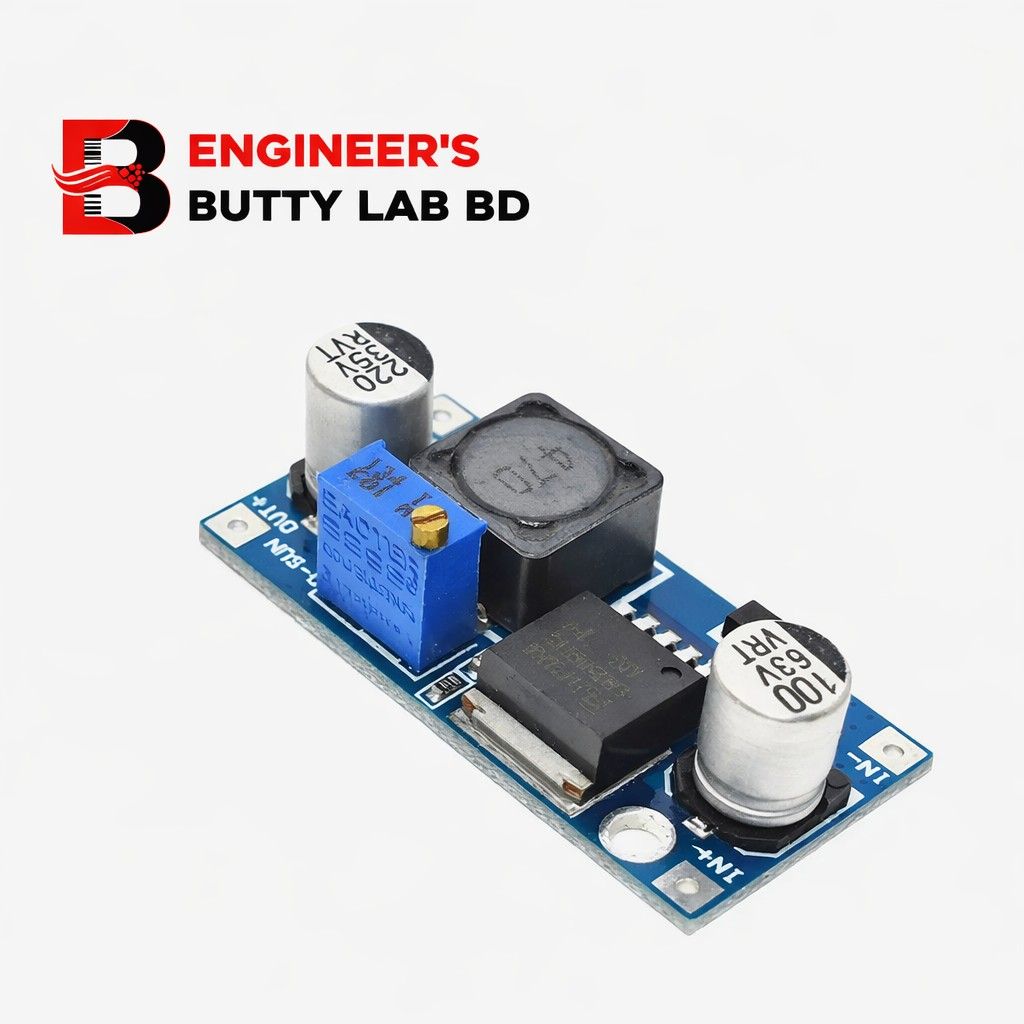

Dc Buck LM2596 DC-DC Buck Converter Step Down Module

DC Buck LM2596 DC-DC Step Down Converter Module – Full Description

The LM2596 DC-DC Buck Converter Module is a high-efficiency step-down (buck) voltage regulator designed to convert a higher DC voltage into a lower adjustable DC output voltage. It is widely used in power supply projects, battery charging systems, embedded systems, and DIY electronics.

This module is based on the LM2596 switching regulator IC, which provides stable output with high efficiency and low heat generation compared to linear regulators.

🔹 Product Overview

The LM2596 Buck Converter reduces input voltage to a lower output voltage using a switching regulator technique. Unlike linear regulators, it wastes very little energy as heat, making it highly efficient (up to 92%).

It includes:

• LM2596 Switching IC

• Adjustable Multi-turn Potentiometer

• High-quality Inductor

• Input & Output Filter Capacitors

• Screw Terminal Pads / Solder Pads

🔧 Key Features

• ✅ Based on LM2596 Step-Down Regulator IC

• ✅ Adjustable Output Voltage

• ✅ High Efficiency (Up to 92%)

• ✅ Maximum Output Current: 3A (with proper cooling)

• ✅ Built-in Thermal Shutdown Protection

• ✅ Short Circuit Protection

• ✅ Compact and Lightweight

• ✅ Stable Output Performance

⚙️ Technical Specifications

🔌 Pin Configuration

The module has four main terminals:

• IN+ – Input Positive

• IN− – Input Ground

• OUT+ – Output Positive

• OUT− – Output Ground

💡 How It Works

The LM2596 uses high-frequency switching (150kHz) along with an inductor and diode to efficiently reduce voltage.

1. Apply input voltage (must be higher than desired output).

2. Adjust the onboard potentiometer.

3. Measure output voltage using a multimeter.

4. Set the required output voltage.

The output voltage must always be lower than input voltage.

🛠 Applications

• Power supply regulation

• Battery charging systems

• Solar power systems

• Arduino and Raspberry Pi projects

• LED driver applications

• DIY electronics projects

• Car voltage regulation

• Robotics power systems

🛡 Protection Features

• Thermal shutdown

• Current limiting

• Short circuit protection

• Over-temperature protection

📐 Physical Characteristics

• Compact PCB board

• Multi-turn blue potentiometer for fine adjustment

• Large inductor for stable regulation

• High-quality electrolytic capacitors

• Lightweight and easy to mount

⚠ Important Notes

• Output voltage must be adjusted before connecting load.

• Always ensure input voltage is higher than output voltage.

• For currents above 2A, use heat sink or cooling.

• Avoid reverse polarity connection.

📦 Package Includes

• 1 × LM2596 DC-DC Buck Converter Step Down Module
