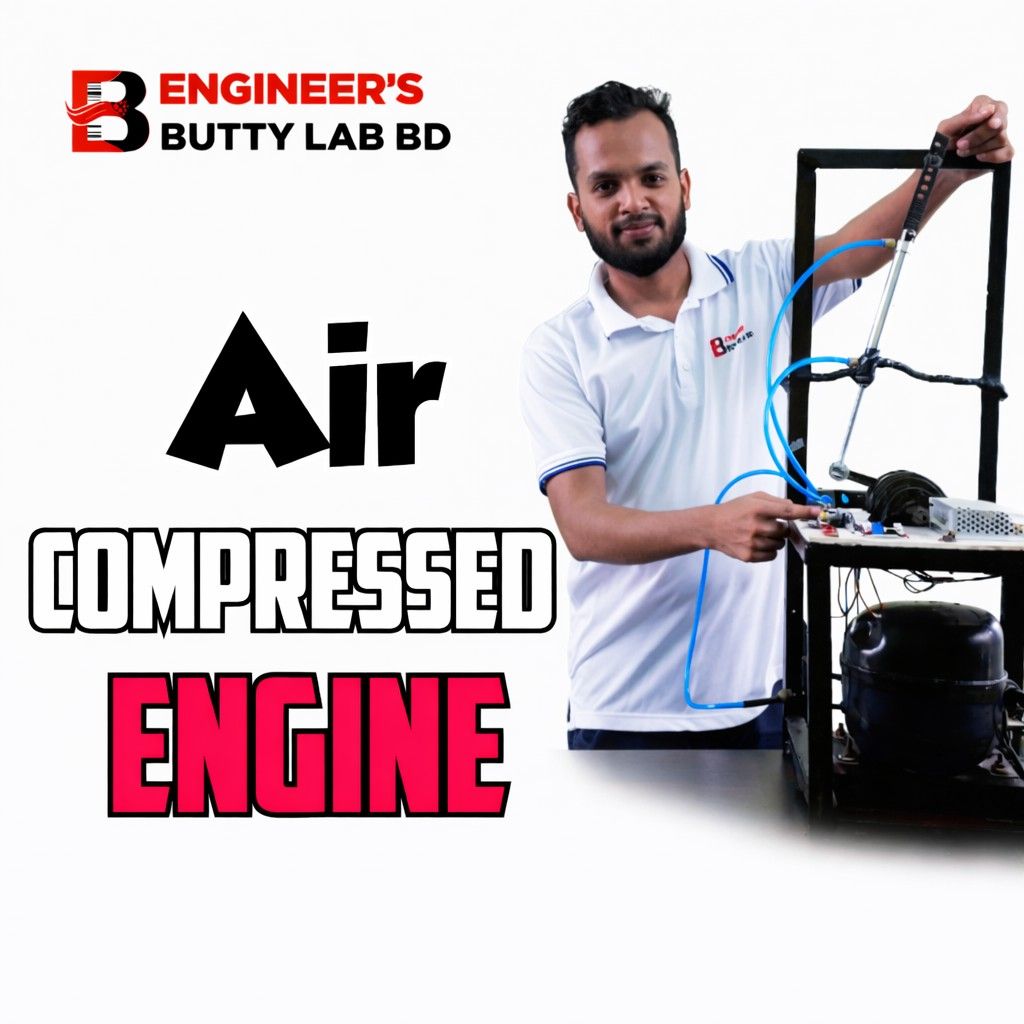

Project Overview

The Compressed Air Engine Using Pneumatic Cylinder and Compressor is an innovative mechanical system that converts stored compressed air energy into useful mechanical motion. Instead of using fossil fuels or combustion, this engine operates purely on pressurized air, making it an eco-friendly, low-cost, and safe alternative energy concept suitable for educational demonstrations and prototype applications.

This project demonstrates how pneumatic power can be utilized to produce rotary or linear motion using a pneumatic cylinder controlled by valves, with compressed air supplied by an air compressor.

Working Principle

The working principle of this engine is based on Pascal’s Law, where compressed air exerts force uniformly in all directions.

1. The air compressor compresses atmospheric air and stores it in a storage tank.

2. When the system is activated, compressed air flows through pneumatic pipes into a control valve.

3. The valve directs the air alternately to either side of the pneumatic cylinder.

4. This creates a reciprocating motion of the piston inside the cylinder.

5. The linear motion of the piston is converted into rotational motion using a crankshaft or linkage mechanism.

6. Exhaust air is safely released to the atmosphere after completing each cycle.

Main Components

• Air Compressor – Compresses and supplies pressurized air

• Pneumatic Cylinder – Converts air pressure into linear motion

• Solenoid / Directional Control Valve – Controls airflow direction

• Air Pipes & Fittings – Transport compressed air

• Frame / Stand – Holds all components securely

• Crankshaft Mechanism – Converts linear motion to rotary motion

• Pressure Regulator & Gauge – Controls and monitors air pressure

Key Features

• Zero fuel consumption

• No combustion or harmful emissions

• Low operating cost

• Simple mechanical design

• Safe operation

• Minimal maintenance

• Educational and demonstrative value

Advantages

• Environment friendly (no CO₂ emission)

• Noise-free operation compared to IC engines

• Lightweight construction

• Easy assembly and maintenance

• Suitable for indoor operation

• Ideal for student projects and research

Limitations

• Lower efficiency compared to IC engines

• Limited power output

• Requires continuous compressed air supply

• Not suitable for high-load applications

Applications

• Engineering educational projects

• Research and development demonstrations

• Pneumatic training systems

• Green energy awareness models

• Low-power mechanical systems

• Industrial automation learning modules

Future Scope

• Integration with solar-powered air compressors

• Use of air storage optimization techniques

• Improved valve timing for higher efficiency

• Hybrid pneumatic-electric systems

• IoT-based monitoring and control

Conclusion

The Compressed Air Engine Using Pneumatic Cylinder and Compressor proves that compressed air can be used as a clean and sustainable energy source for mechanical power generation. Although it cannot yet replace conventional engines, it serves as a powerful educational tool and a stepping stone toward green energy innovation.
