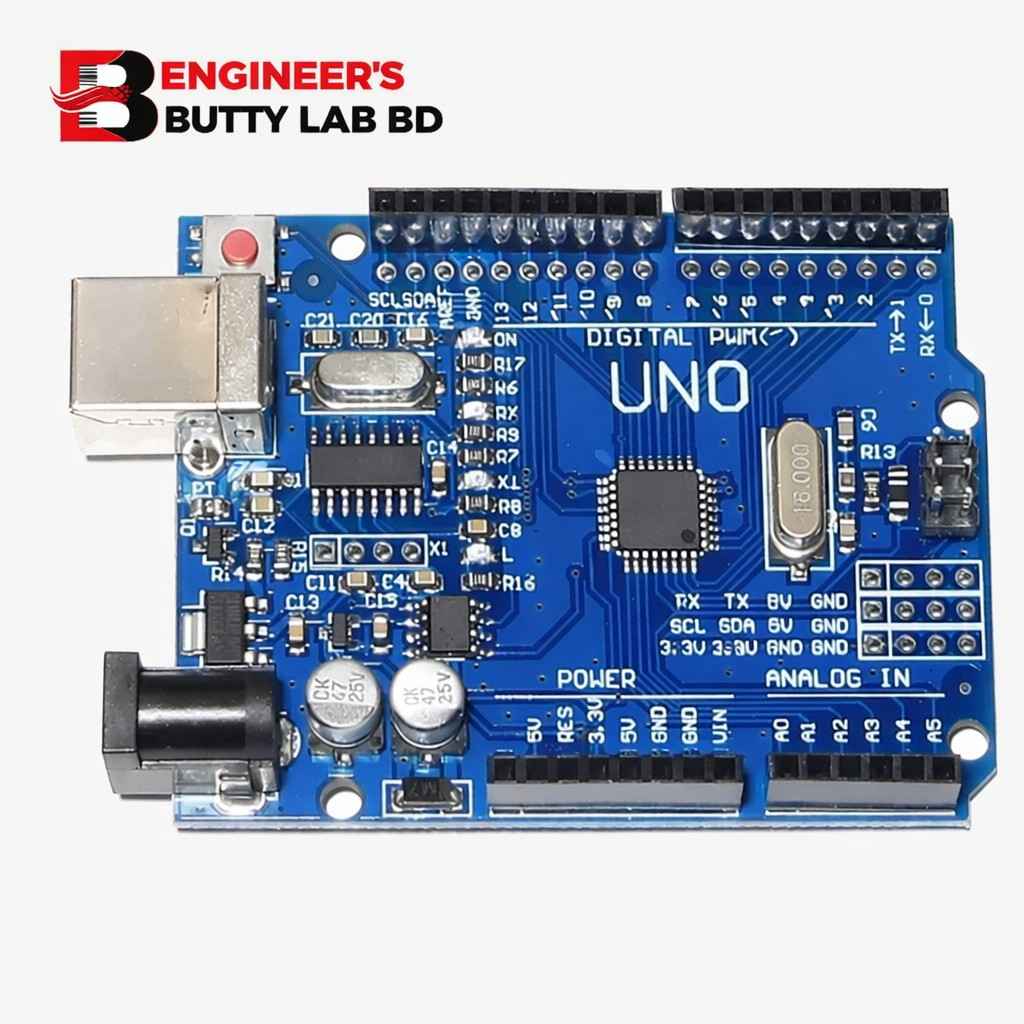

Arduino Uno R3 (SMD Atmega328 IC)

Arduino Uno R3 SMD – Description

The Arduino Uno R3 SMD is a popular and reliable microcontroller development board based on the ATmega328P (SMD version). It is functionally identical to the standard Arduino Uno R3 (DIP version) but uses a surface-mounted microcontroller, making it more robust for long-term and professional applications.

Designed for electronics learning, prototyping, IoT development, robotics, automation, and embedded systems, the Arduino Uno R3 SMD is widely used by students, hobbyists, educators, and engineers around the world.

Microcontroller & Performance

The board is powered by the ATmega328P microcontroller (SMD package), which provides stable performance and reliable operation for a wide range of projects.

• Microcontroller: ATmega328P (SMD)

• Operating Voltage: 5V

• Input Voltage (recommended): 7–12V

• Clock Speed: 16 MHz

The SMD version offers better vibration resistance and durability compared to socketed chips.

Input / Output Capabilities

The Arduino Uno R3 SMD provides flexible digital and analog input/output options:

• Digital I/O Pins: 14 (6 with PWM support)

• Analog Input Pins: 6

• PWM Pins: 3, 5, 6, 9, 10, 11

These pins allow easy interfacing with sensors, actuators, motors, displays, and communication modules.

Communication Interfaces

The board supports multiple communication protocols for easy integration with other devices:

• UART (Serial)

• SPI

• I²C (TWI)

USB communication is handled via a USB-to-serial interface, allowing simple programming and serial monitoring.

Memory

• Flash Memory: 32 KB (0.5 KB used by bootloader)

• SRAM: 2 KB

• EEPROM: 1 KB

This memory configuration is suitable for most beginner to intermediate embedded applications.

Power Options

The Arduino Uno R3 SMD can be powered in multiple ways:

• USB connection

• DC barrel jack

• Vin pin

Built-in voltage regulation ensures stable operation during development and deployment.

Software Support

The board is fully supported by the Arduino IDE, making programming simple and beginner-friendly.

• Supports C / C++ based Arduino language

• Compatible with thousands of Arduino libraries

• Works on Windows, macOS, and Linux

Uploading code is fast and easy via USB.

Design & Form Factor

• Standard Arduino Uno form factor

• Compatible with Arduino shields

• Clearly labeled pins for easy use

• Durable PCB suitable for repeated use

The SMD design reduces mechanical failure risks, making it ideal for classroom and industrial environments.

Typical Applications

• Electronics learning and STEM education

• IoT and smart device development

• Robotics and motor control

• Home automation projects

• Sensor data acquisition

• Rapid prototyping

• Embedded system development

Summary

The Arduino Uno R3 SMD is a powerful, stable, and beginner-friendly microcontroller board that offers excellent compatibility, durability, and ease of use. With its robust SMD design, wide community support, and extensive library ecosystem, it is an ideal choice for learning, prototyping, and professional embedded projects.
