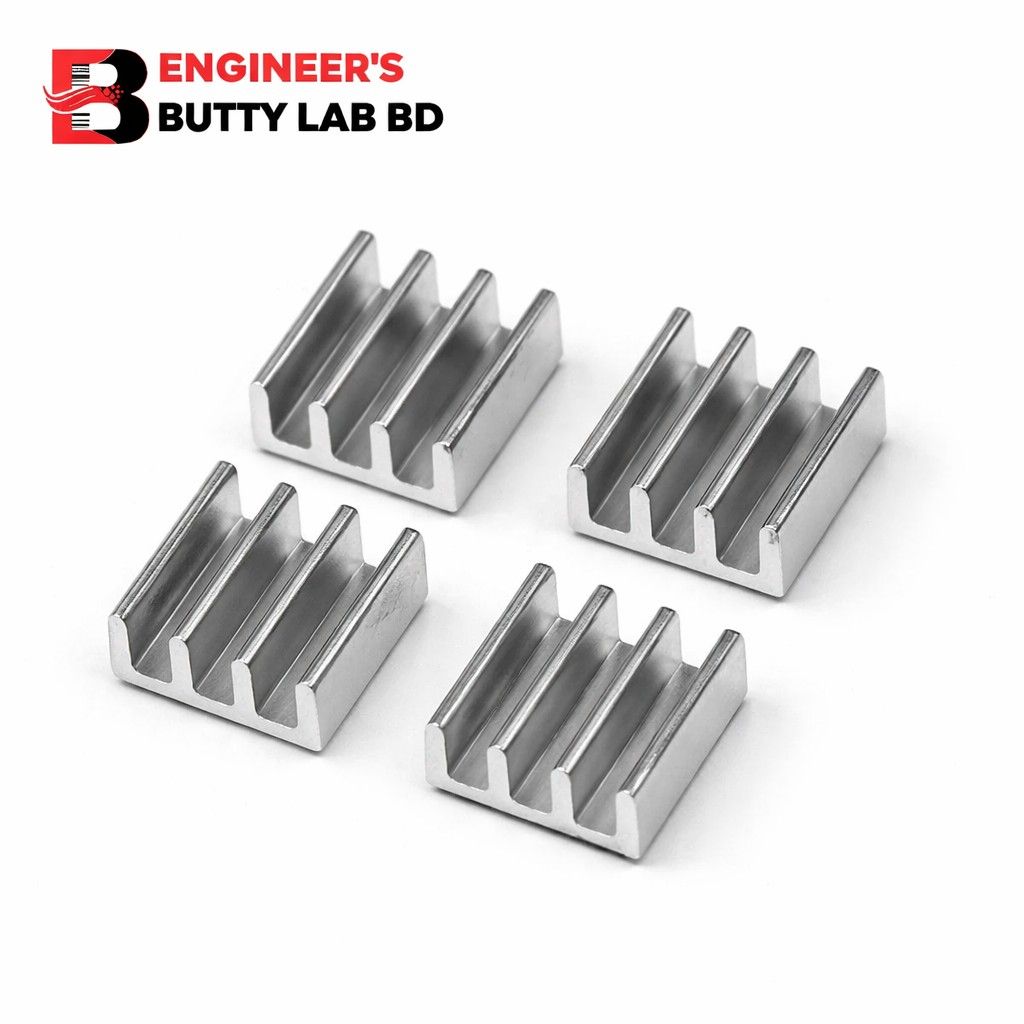

9x5x9mm Aluminum Heat Sink (1pcs)

9×5×9 mm Aluminum Heat Sink – Description

The 9×5×9 mm Aluminum Heat Sink is a compact and efficient thermal management solution designed to dissipate heat from small electronic components. Manufactured from high-quality aluminum, this heat sink improves heat transfer and helps maintain safe operating temperatures in embedded systems, microcontrollers, and compact electronic modules.

Its small footprint and lightweight design make it ideal for applications where space is limited but effective cooling is required.

Material & Thermal Performance

This heat sink is made from premium aluminum alloy, known for its excellent thermal conductivity and durability. The aluminum body efficiently absorbs heat from the component surface and disperses it into the surrounding air.

• Material: Aluminum alloy

• Thermal Conductivity: High for rapid heat dissipation

• Surface Finish: Smooth, corrosion-resistant

The finned structure increases surface area, allowing faster and more efficient cooling through natural convection.

Compact Design & Dimensions

With a precise 9 mm × 5 mm × 9 mm form factor, this heat sink is specifically designed for small ICs and chips without adding unnecessary bulk.

• Length: 9 mm

• Width: 5 mm

• Height: 9 mm

Its vertical fin layout ensures effective airflow even in tight spaces.

Installation & Compatibility

The heat sink is typically mounted using thermal adhesive tape or thermal glue, making installation quick and tool-free. It is compatible with a wide range of electronic components, including:

• Microcontrollers

• Voltage regulators

• Memory chips

• Power management ICs

• Raspberry Pi, Arduino, and other SBC components

Its compact size allows easy integration into stacked or enclosed designs.

Power Efficiency & Reliability

By reducing component temperature, the heat sink helps:

• Prevent overheating

• Improve system stability

• Extend component lifespan

• Maintain consistent performance

It is especially useful in passive cooling setups where fans are not practical.

Typical Applications

• Raspberry Pi and single-board computers

• Arduino and microcontroller projects

• Embedded and IoT devices

• Power IC cooling

• Compact electronics and DIY projects

Summary

The 9×5×9 mm Aluminum Heat Sink is a simple yet highly effective cooling solution for small electronic components. Its high thermal conductivity, compact size, and easy installation make it an excellent choice for embedded systems, DIY electronics, and professional hardware designs where reliable passive cooling is essential.
