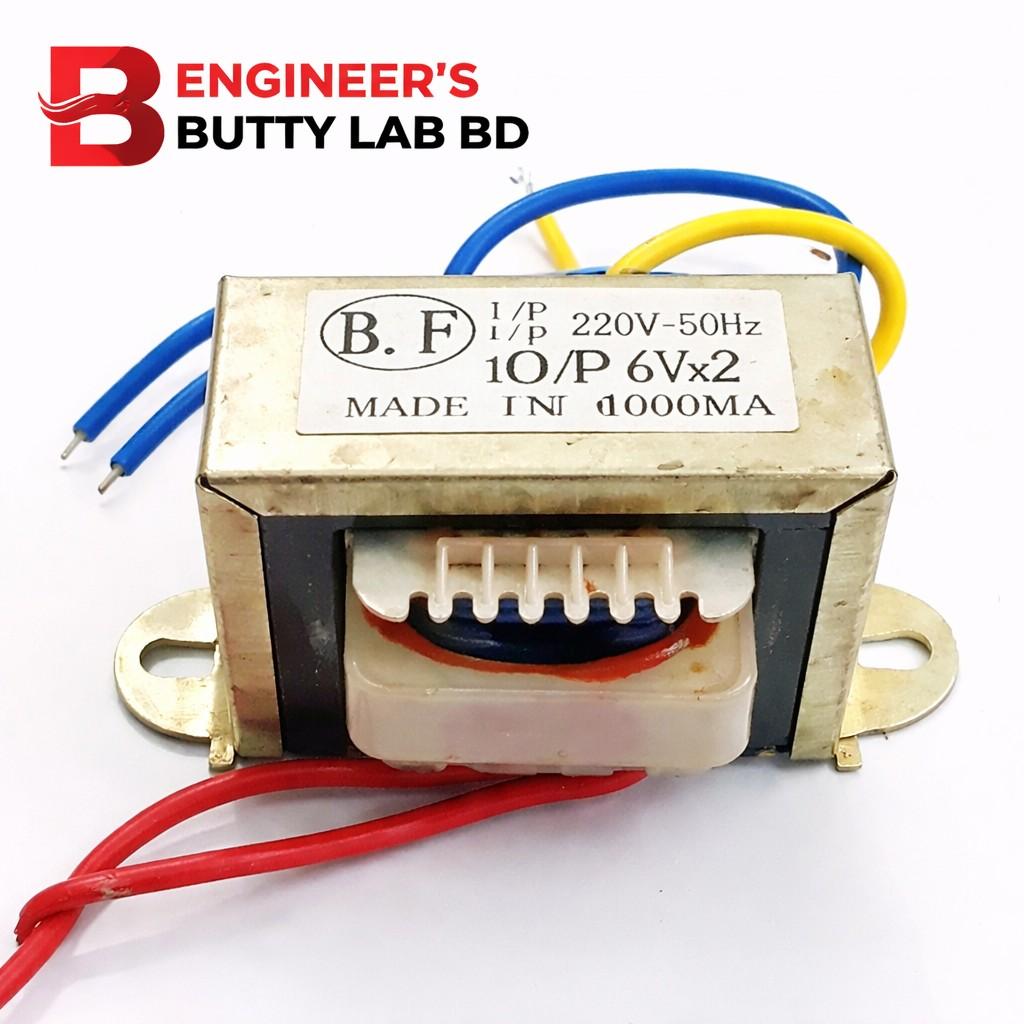

🔌 6-0-6 Volt 1A Transformer (Center-Tapped Step-Down Transformer)

📦 Product Overview

The 6-0-6 Volt 1A Transformer is a compact step-down transformer designed to convert 220V AC input into 6V-0-6V AC output with a maximum current of 1 Ampere. It features a center-tapped secondary winding, making it suitable for dual low-voltage DC power supplies and small electronic circuits.

This transformer is widely used in battery chargers, audio circuits, small power supplies, and educational projects.

⚡ Electrical Specifications

🔄 Understanding 6-0-6 Output

The transformer provides:

• 6V AC between one 6V terminal and center (0)

• 6V AC between the other 6V terminal and center (0)

• 12V AC between both 6V terminals

This configuration allows:

✔ ±6V DC power supply
✔ 12V DC supply (after rectification)
✔ Low-voltage dual supply circuits

🏗 Physical Features

⭐ Key Features

✔ Stable and reliable output
✔ Suitable for low-voltage circuits
✔ Compact and lightweight
✔ Easy to mount
✔ Durable construction
✔ Safe for small power applications

🛠 Applications

This 6-0-6 1A transformer is ideal for:

• Small battery charger circuits

• Audio preamplifier circuits

• DIY electronics projects

• Low-voltage laboratory supplies

• Signal processing circuits

• Educational training kits

• Analog electronics projects

🔧 DC Conversion Example

To obtain DC voltage:

1. Connect secondary to a bridge rectifier

2. Add smoothing capacitor

3. Use voltage regulator (7805 / 7806 if required)

Possible DC outputs:

• +6V DC

• −6V DC

• 12V DC

⚠ Safety Guidelines

• Always use fuse protection on primary side

• Do not exceed 1A load

• Ensure proper insulation of AC wiring

• Mount securely to avoid vibration

• Keep away from moisture

🏆 Advantages

✔ Reliable low-voltage transformer
✔ Ideal for small electronics
✔ Cost-effective solution
✔ Easy integration into circuits
