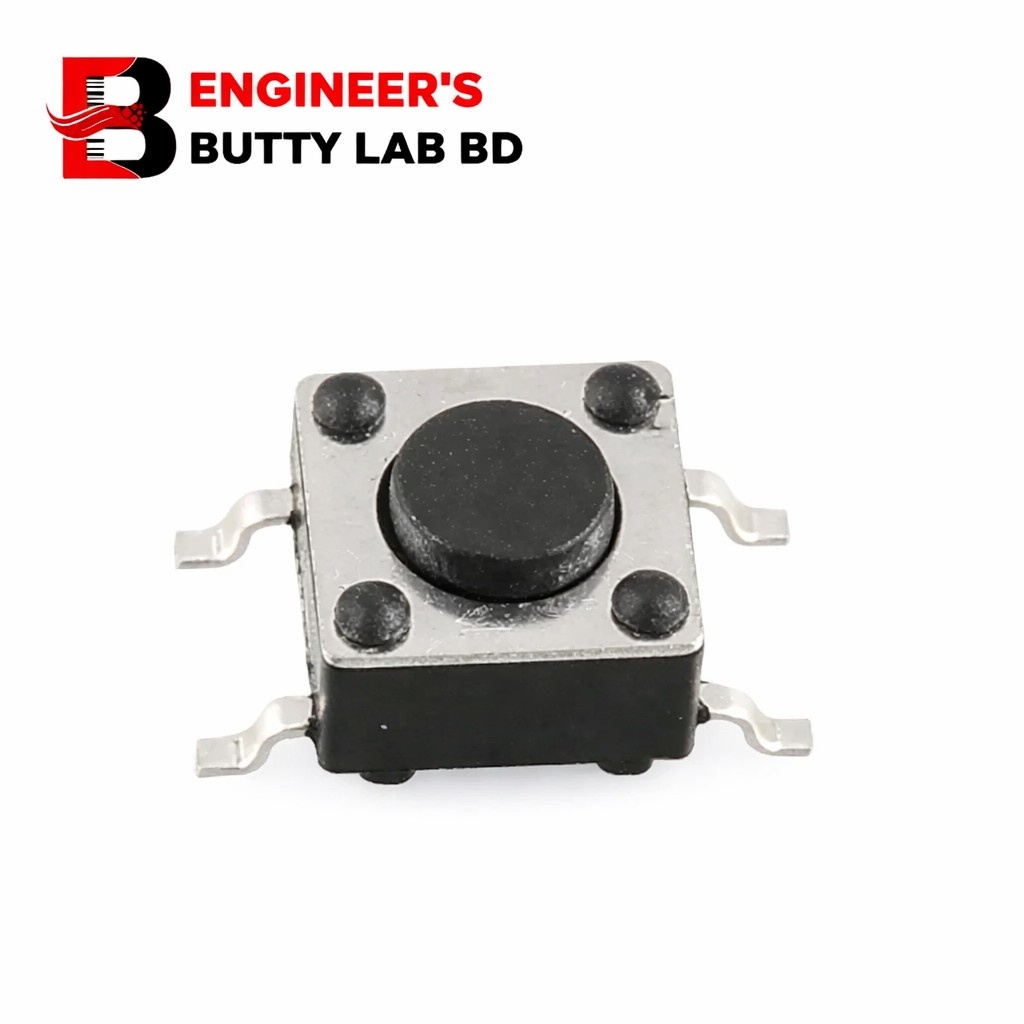

🔘 4 Pin Push Button Switch – Small SMD 6x6mm

The 4 Pin Push Button Switch (6x6mm SMD Type) is a compact tactile momentary switch designed for surface mount (SMD) applications. It provides a soft tactile feedback when pressed and automatically returns to its original position when released.

Due to its small size and reliable performance, it is widely used in PCBs, consumer electronics, control panels, and DIY electronics projects.

⚙️ Key Features

• ✅ Compact 6x6mm Size

• ✅ 4-Pin Configuration

• ✅ SMD (Surface Mount Device) Type

• ✅ Momentary Push Button (Normally Open)

• ✅ Tactile Feedback Click

• ✅ Lightweight and Durable

• ✅ Easy PCB Mounting

• ✅ Long Mechanical Life

🔌 Technical Specifications

🔁 How It Works

• When button is pressed → Circuit closes (ON)

• When released → Circuit opens (OFF)

This type of switch is called a momentary switch because it only stays ON while being pressed.

📌 Pin Configuration

The 4 pins are internally connected in pairs:

• Two pins on one side are connected together

• Two pins on the opposite side are connected together

Pressing the button connects both sides, completing the circuit.

🛠️ Applications

• Remote Controls

• Arduino Projects

• Microcontroller Boards

• Industrial Control Panels

• Keypads

• Consumer Electronics

• Power Reset Buttons

• Embedded Systems

⭐ Advantages

• Small footprint for compact PCB designs

• Reliable and stable performance

• Good tactile feel

• Low power consumption

• Suitable for automated PCB assembly

📦 Package Includes

• 1 × 4 Pin Push Button Switch (6x6mm SMD)
