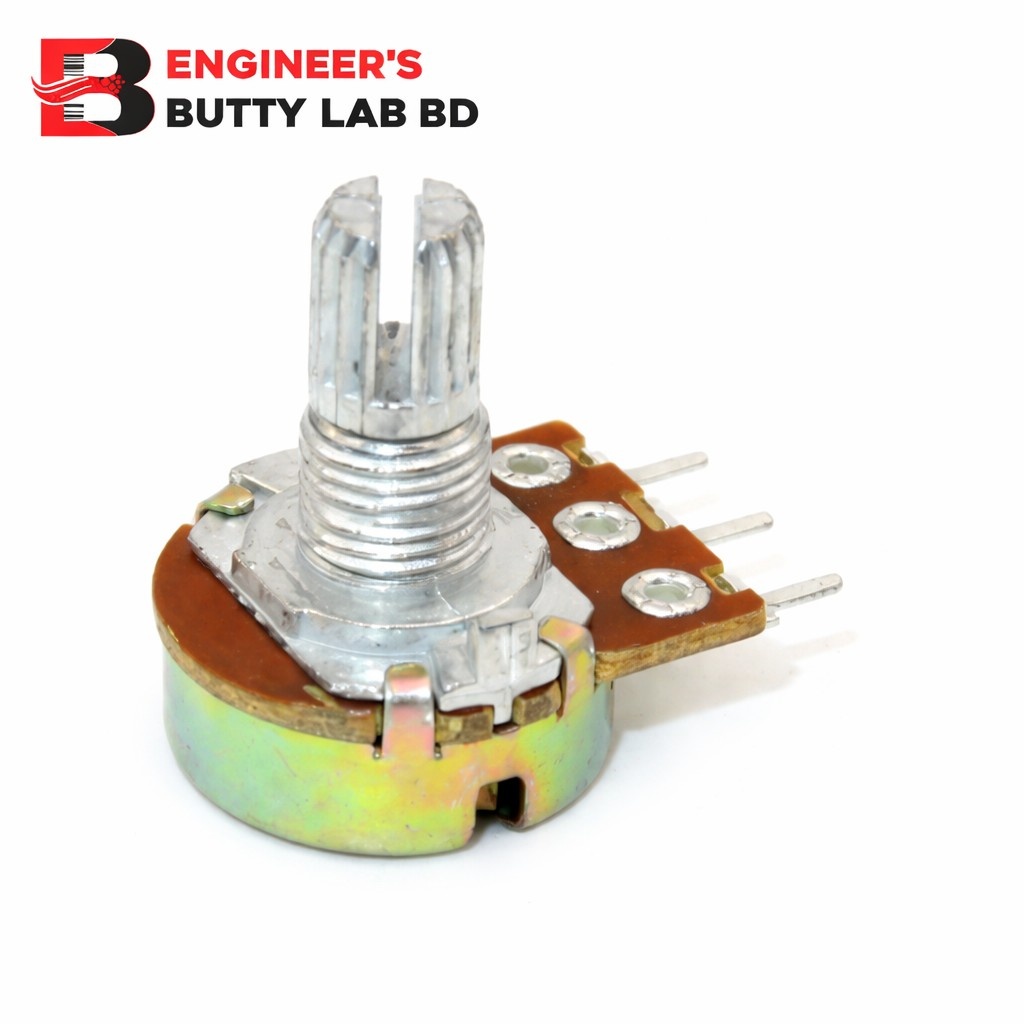

10K Ohm Potentiometer

10K Ohm Potentiometer – Full Description

A 10K Ohm Potentiometer is a three-terminal variable resistor used to manually adjust voltage, current, or signal levels in electronic circuits. It allows smooth control of resistance from 0Ω to 10,000Ω (10 kilo-ohms) by rotating the shaft.

🔧 Basic Specifications

• Resistance Value: 10KΩ (10,000 Ohms)

• Type: Rotary Potentiometer

• Terminals: 3 Pins

• Power Rating: Usually 0.25W (¼ Watt)

• Tolerance: ±10% or ±20% (depends on model)

• Rotation Angle: Typically 270°

• Shaft Type: Knurled / Split Shaft (for easy knob fitting)

• Mounting Type: Panel mount or PCB mount

📌 Pin Configuration

It has 3 pins:

1. Left Pin (Terminal 1) – One end of resistive track

2. Middle Pin (Wiper) – Variable output

3. Right Pin (Terminal 3) – Other end of resistive track

👉 When used as a voltage divider, all 3 pins are used.
👉 When used as a variable resistor (rheostat), only 2 pins are used (middle + one side).

⚙️ Working Principle

Inside the potentiometer:

• A carbon resistive track is connected between the two outer terminals.

• A metal wiper (connected to the middle pin) slides over the resistive track when the shaft is rotated.

• Turning the shaft changes the resistance between the middle pin and outer pins.

Example:

• Rotate fully left → Near 0Ω between middle and one side

• Rotate fully right → Near 10KΩ between middle and that side

📦 Common Applications

✅ Volume control in audio devices
✅ LCD contrast adjustment (Arduino 16×2 LCD)
✅ Speed control circuits
✅ Light dimmer circuits
✅ Sensor calibration
✅ Signal tuning

🔌 Usage Example (Arduino LCD Contrast)

• Connect one outer pin to GND

• Other outer pin to 5V

• Middle pin to LCD V0 (Contrast pin)
  Turning the knob adjusts display contrast.

🛠 Advantages

✔ Simple to use
✔ Low cost
✔ Smooth manual control
✔ Easy installation

⚠️ Important Notes

• Do not exceed the power rating (usually 0.25W).

• Avoid applying voltage higher than rated.
