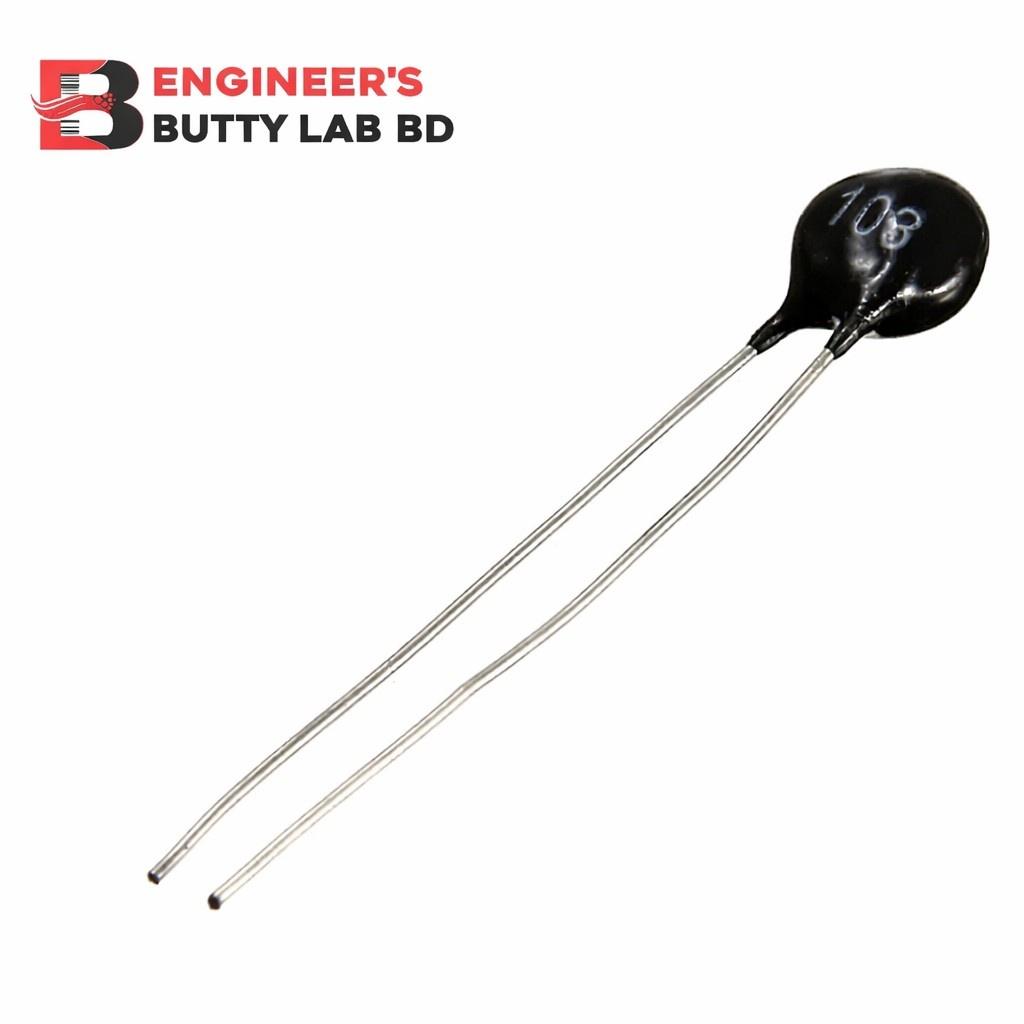

10K Ohm NTC Thermistor Temperature Sensor

10K Ohm NTC Thermistor Temperature Sensor

The 10K Ohm NTC (Negative Temperature Coefficient) Thermistor is a temperature-sensitive resistor whose resistance decreases as temperature increases. It is widely used for accurate temperature measurement, monitoring, and control applications due to its fast response, compact size, and low cost.

Working Principle

The thermistor operates on the negative temperature coefficient principle. At lower temperatures, the resistance of the thermistor is high. As temperature rises, the semiconductor material inside the thermistor allows more charge carriers to flow, reducing resistance. This resistance change is converted into a voltage signal using a voltage divider circuit and read by a microcontroller or analog system.

Key Features

• Nominal resistance: 10 kΩ at 25 °C

• Fast thermal response

• High sensitivity to temperature changes

• Small and lightweight design

• Easy to interface with analog circuits

• Low cost and reliable performance

Electrical Specifications

• Type: NTC Thermistor

• Resistance at 25 °C: 10 kΩ

• Tolerance: ±1% to ±5% (model dependent)

• Operating Temperature Range: −40 °C to +125 °C

• B-Value: ~3950 K (typical)

• Output: Analog (resistance-based)

Pin Configuration

• Two-pin device

• Non-polarized (can be connected in any direction)

Applications

• Temperature sensing and monitoring

• Arduino, Raspberry Pi, ESP32 projects

• HVAC systems

• Battery temperature protection

• Power supply thermal monitoring

• Medical and industrial electronics

• Home automation and IoT systems

Advantages

• High accuracy in narrow temperature ranges

• Very responsive to temperature changes

• Simple circuit implementation

• Energy-efficient and durable

• Ideal for embedded systems

Conclusion

The 10K Ohm NTC Thermistor Temperature Sensor is an efficient and economical solution for temperature measurement and control. Its high sensitivity, fast response, and ease of integration make it an essential component for IoT, automation, and electronic temperature monitoring applications.
